PA Monofilament Braided Sleeving
- Material: Nylon (PA)
- Color: Black (custom colors available)
- Operating Temperature: -50°C to 150°C
- Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Raw material: Flame retardant grade up to UL94 V-0
- Cutting Method: Hot cutting
- Packaging: Paper reel

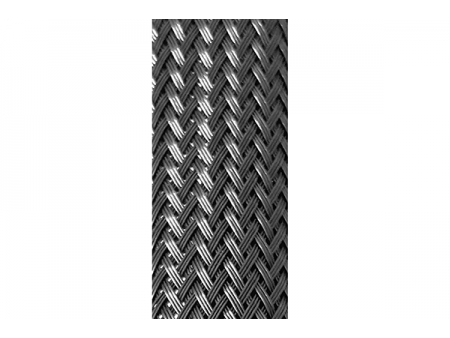

EX200 series braided sleeving is manufactured from environmentally friendly, non-toxic nylon monofilament, offering excellent abrasion resistance, expandability, flame retardancy, and corrosion resistance. It effectively protects hoses, pipes, wire harnesses, and cables from mechanical damage such as abrasion, cuts, and wear.

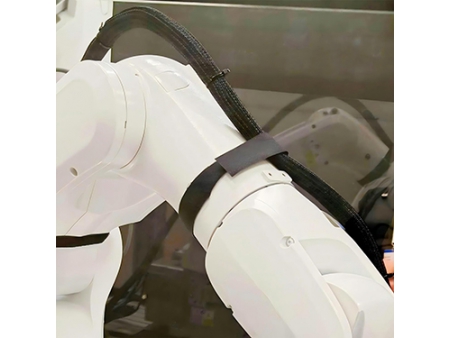

This braided sleeving is commonly used in automotive, rail transit, and fiber optic applications. It effectively extends the service life of hoses, pipes, wire harnesses, and other critical components by providing durable mechanical protection.
| Model | Flat Width (mm) | Application Range (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|
| 3±1 mm | 1-5 mm | 1000 | PA-003 | |
| 6±2 mm | 3-9 mm | 500 | PA-006 | |
| 8±2 mm | 5-12 mm | 300 | PA-008 | |
| 10±2 mm | 7-15 mm | 300 | PA-010 | |
| 12±2 mm | 8-18 mm | 300 | PA-012 | |
| 14±2 mm | 10-20 mm | 300 | PA-014 | |
| 16±3 mm | 12-22 mm | 300 | PA-016 | |
| 19±3 mm | 14-25 mm | 300 | PA-019 | |
| 25±3 mm | 18-30 mm | 200 | PA-025 | |
| 28±4 mm | 20-35 mm | 200 | PA-028 | |
| 32±4 mm | 25-40 mm | 200 | PA-032 | |
| 38±4 mm | 30-45 mm | 100 | PA-038 | |
| 50±5 mm | 35-55 mm | 100 | PA-050 | |
| 60±5 mm | 40-60 mm | 100 | PA-060 |
Custom sizes available upon request.
Braided Sleeving Manufacturer Since 2006
We are a manufacturer specializing in braided sleeving products. Our products include PET & PA braided sleeving, EMI shielding wraps, aluminum foil fiberglass sleeving and other sleeving products engineered to provide functions such as heat resistance, abrasion protection, and EMI interference shielding. With a monthly capacity of 8 million meters, we are committed to providing custom sleeving products for global customers in automotive, aerospace, and industrial sectors.
