PET & PA Monofilament Braided Sleeving
Request a Quote
EX300
- Material: PET PA
- Color: Black (custom colors available)
- Operating Temperature: -50°C to 150°C
- Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Raw material: Flame retardant grade up to UL94 V-0
- Abrasion Resistance: Grade 6
- Cutting Method: Hot cutting
- Packaging: Paper reel
Now

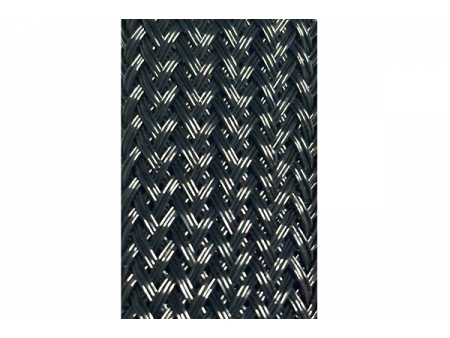

EX300 braided sleeving is manufactured from a hybrid braid of PET and PA monofilaments, allowing it to expand several times its nominal diameter, making easy installation possible. It offers excellent abrasion resistance and chemical resistance, making it suitable for demanding protection applications.
Applications

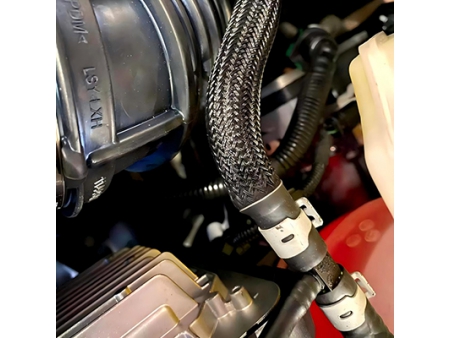

This hybrid sleeving is suitable for protecting automotive hoses, pipelines, and other critical components requiring reliable abrasion and chemical resistance.
Certifications
Parameters
| Model | Flat Width (mm) | Application Range (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 6±2 | 3~9 | 300 | |
| 8±2 | 5~12 | 300 | |
| 10±2 | 7~15 | 300 | |
| 12±2 | 8~18 | 200 | |
| 14±2 | 10~20 | 200 | |
| 16±3 | 12~22 | 200 | |
| 19±3 | 14~25 | 200 | |
| 25±3 | 18~30 | 200 | |
| 32±4 | 25~40 | 150 | |
| 38±4 | 30~45 | 100 | |
| 50±5 | 40~60 | 100 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
