PCBN Tools (Tool Bits for Whirling), DCGW

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-dcgw-2-2-2.html

Technical Specifications

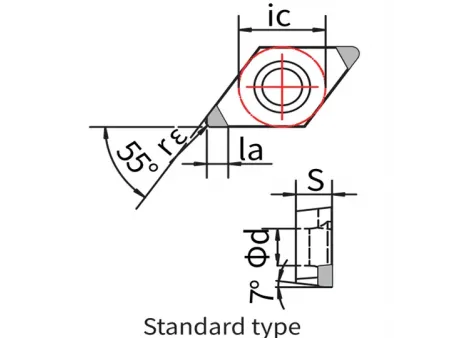

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
DCGW070202	DCGW2(1.5)(0.5)	2N	Standard	6.35	2.8	2.38	0.2	2.2	●	●	●
DCGW070204	DCGW2(1.5)1						0.4
DCGW070208	DCGW2(1.5)2						0.8
DCGW070202	DCGW2(1.5)(0.5)	2N	Wiper	6.35	2.8	2.38	0.2	2.2	●	●	●
DCGW070204	DCGW2(1.5)1						0.4
DCGW070208	DCGW2(1.5)2						0.8
DCGW070202	DCGW2(1.5)(0.5)	2N	Chip breaker	6.35	2.8	2.38	0.2	2.2	●	●	●
DCGW070204	DCGW2(1.5)1						0.4
DCGW070208	DCGW2(1.5)2						0.8
DCGW070202	DCGW2(1.5)(0.5)	2N	Standard	6.35	2.8	2.38	0.2	3	●	●	●
DCGW070204	DCGW2(1.5)1						0.4
DCGW070208	DCGW2(1.5)2						0.8
DCGW070202	DCGW2(1.5)(0.5)	2N	Wiper	6.35	2.8	2.38	0.2	3	●	●	●
DCGW070204	DCGW2(1.5)1						0.4
DCGW070208	DCGW2(1.5)2						0.8
DCGW070202	DCGW2(1.5)(0.5)	2N	Chip breaker	6.35	2.8	2.38	0.2	3	●	●	●
DCGW070204	DCGW2(1.5)1						0.4
DCGW070208	DCGW2(1.5)2						0.8
DCGW11T304	DCGW3(2.5)1	2N	Standard	9.525	4.4	3.97	0.4	2.2	●	●	●
DCGW11T308	DCGW3(2.5)2						0.8
DCGW11T312	DCGW3(2.5)3						1.2
DCGW11T304	DCGW3(2.5)1	2N	Wiper	9.525	4.4	3.97	0.4	2.2	●	●	●
DCGW11T308	DCGW3(2.5)2						0.8
DCGW11T312	DCGW3(2.5)3						1.2
DCGW11T304	DCGW3(2.5)1	2N	Chip breaker	9.525	4.4	3.97	0.4	2.2	●	●	●
DCGW11T308	DCGW3(2.5)2						0.8
DCGW11T312	DCGW3(2.5)3						1.2
DCGW11T304	DCGW3(2.5)1	2N	Standard	9.525	4.4	3.97	0.4	3	●	●	●
DCGW11T308	DCGW3(2.5)2						0.8
DCGW11T312	DCGW3(2.5)3						1.2
DCGW11T304	DCGW3(2.5)1	2N	Wiper	9.525	4.4	3.97	0.4	3	●	●	●
DCGW11T308	DCGW3(2.5)2						0.8
DCGW11T312	DCGW3(2.5)3						1.2
DCGW11T304	DCGW3(2.5)1	2N	Chip breaker	9.525	4.4	3.97	0.4	3	●	●	●
DCGW11T308	DCGW3(2.5)2						0.8
DCGW11T312	DCGW3(2.5)3						1.2
DCGW150404	DCGW431	2N	Standard	12.7	5.5	4.76	0.4	2.2	●	●	●
DCGW150408	DCGW432						0.8
DCGW150412	DCGW433						1.2
DCGW150404	DCGW431	2N	Wiper	12.7	5.5	4.76	0.4	2.2	●	●	●
DCGW150408	DCGW432						0.8
DCGW150412	DCGW433						1.2
DCGW150404	DCGW431	2N	Chip breaker	12.7	5.5	4.76	0.4	2.2	●	●	●
DCGW150408	DCGW432						0.8
DCGW150412	DCGW433						1.2
DCGW150404	DCGW431	2N	Standard	12.7	5.5	4.76	0.4	3	●	●	●
DCGW150408	DCGW432						0.8
DCGW150412	DCGW433						1.2
DCGW150404	DCGW431	2N	Wiper	12.7	5.5	4.76	0.4	3	●	●	●
DCGW150408	DCGW432						0.8
DCGW150412	DCGW433						1.2
DCGW150404	DCGW431	2N	Chip breaker	12.7	5.5	4.76	0.4	3	●	●	●
DCGW150408	DCGW432						0.8
DCGW150412	DCGW433						1.2
