PCBN Tools (Tool Bits for Whirling), TNGA

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-tnga-2-2-8.html

Technical Specifications

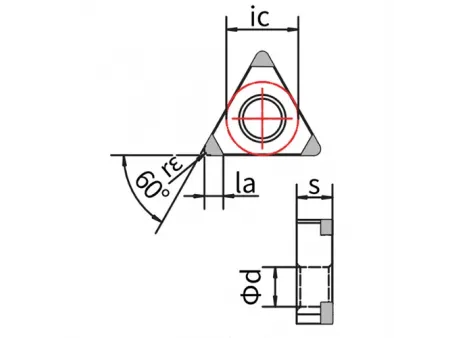

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
TNGA160404	TNGA331	3N	Standard	9.525	3.81	4.76	0.4	2.2	●	●	●
TNGA160408	TNGA332						0.8
TNGA160412	TNGA333						1.2
TNGA160404	TNGA331	3N	Chip	9.525	3.81	4.76	0.4	2.2	●	●	●
TNGA160408	TNGA332		breaker				0.8
TNGA160412	TNGA333						1.2
TNGA160404	TNGA331	3N	Standard	9.525	3.81	4.76	0.4	3	●	●	●
TNGA160408	TNGA332						0.8
TNGA160412	TNGA333						1.2
TNGA160404	TNGA331	3N	Chip	9.525	3.81	4.76	0.4	3	●	●	●
TNGA160408	TNGA332		breaker				0.8
TNGA160412	TNGA333						1.2
TNGA160404	TNGA331	6N	Standard	9.525	3.81	4.76	0.4	2.2	●	●	●
TNGA160408	TNGA332						0.8
TNGA160412	TNGA333						1.2
TNGA160404	TNGA331	6N	Chip	9.525	3.81	4.76	0.4	2.2	●	●	●
TNGA160408	TNGA332		breaker				0.8
TNGA160412	TNGA333						1.2
TNGA160404	TNGA331	6N	Standard	9.525	3.81	4.76	0.4	3	●	●	●
TNGA160408	TNGA332						0.8
TNGA160412	TNGA333						1.2
TNGA160404	TNGA331	6N	Chip	9.525	3.81	4.76	0.4	3	●	●	●
TNGA160408	TNGA332		breaker				0.8
TNGA160412	TNGA333						1.2
