PCBN Tools (Tool Bits for Whirling), VBGW

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-vbgw-2-2-3.html

Technical Specifications

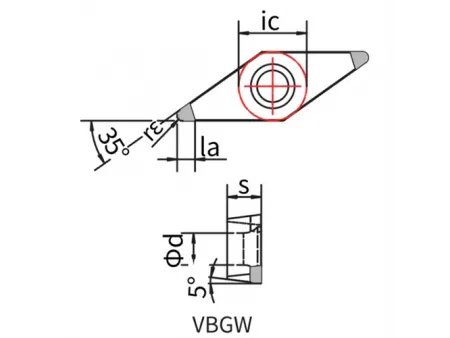

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
VBGW110302	VBGW22(0.5)	2N	Standard	6.35	2.8	3.18	0.2	2.2	●	●	●
VBGW110304	VBGW221						0.4
VBGW110308	VBGW222						0.8
VBGW110302	VBGW22(0.5)	2N	Chip breaker	6.35	2.8	3.18	0.2	2.2	●	●	●
VBGW110304	VBGW221						0.4
VBGW110308	VBGW222						0.8
VBGW110302	VBGW22(0.5)	2N	Standard	6.35	2.8	3.18	0.2	3	●	●	●
VBGW110304	VBGW221						0.4
VBGW110308	VBGW222						0.8
VBGW110302	VBGW22(0.5)	2N	Chip breaker	6.35	2.8	3.18	0.2	3	●	●	●
VBGW110304	VBGW221						0.4
VBGW110308	VBGW222						0.8
VBGW160404	VBGW331	2N	Standard	9.525	4.4	4.76	0.4	2.2	●	●	●
VBGW160408	VBGW332						0.8
VBGW160412	VBGW333						1.2
VBGW160404	VBGW331	2N	Chip breaker	9.525	4.4	4.76	0.4	2.2	●	●	●
VBGW160408	VBGW332						0.8
VBGW160412	VBGW333						1.2
VBGW160404	VBGW331	2N	Standard	9.525	4.4	4.76	0.4	3	●	●	●
VBGW160408	VBGW332						0.8
VBGW160412	VBGW333						1.2
VBGW160404	VBGW331	2N	Chip breaker	9.525	4.4	4.76	0.4	3	●	●	●
VBGW160408	VBGW332						0.8
VBGW160412	VBGW333						1.2
VBGW160404	VBGW331	2N	Standard	9.525	4.4	4.76	0.4	4	●	●	●
VBGW160408	VBGW332						0.8
VBGW160412	VBGW333						1.2
VBGW160416	VBGW334						1.6
VBGW160404	VBGW331	2N	Chip breaker	9.525	4.4	4.76	0.4	4	●	●	●
VBGW160408	VBGW332						0.8
VBGW160412	VBGW333						1.2
VBGW160416	VBGW334						1.6
