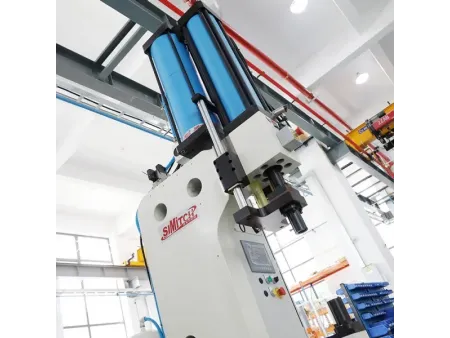

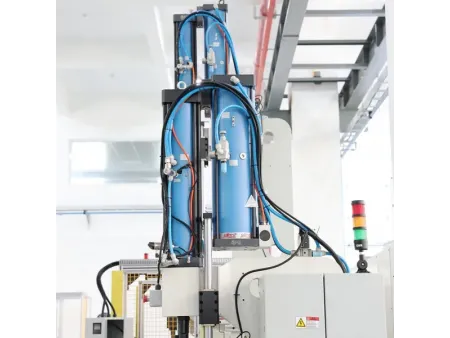

Pneumohydraulic Cylinder, BT Series

Request a Quote

Website: http://clinchingmachine-en.com/pneumohydraulic-cylinder-1-2.html

Operating pressure ≤6bar
Pressing force 2-2000kN
Force stroke 5-52mm
Total stroke 100/200/250mm

The pneumohydraulic cylinder drive unit combines the high-speed motion of pneumatic actuation with the high output force of hydraulic systems. A pneumatic cylinder provides rapid approach to the workpiece, while hydraulic components generate powerful and precise pressure during the final stroke. With high energy efficiency and flexible control, this solution reduces energy consumption while meeting industrial requirements for both speed and force, making it an ideal choice for pneumohydraulic presses and related equipment.

Leave a Message

BT Series Dimensions

Model	A1	A2	B	C	D	E	F (f7)	G	H	K	L	M	N	O	P	X	Remarks
BT01-200-12S	66	80	514	6-M6×12	40	G1 /8	30	10	16	24	M12×1.5	15	13	110	160	60	Spring
BT01-200-24S	66	92	514	6-M6×12	40	G1/8	30	10	16	24	M12×1.5	15	13	135	162	100	Spring
BT02-200-12S	78	92	529	6-M08×15	54	G1/4	40	10	20	26	M16×1.5	15	17	135	176	60	Spring
BT02-200-24S	78	112	529	6-M08×15	54	G1/4	40	10	20	26	M16×1.5	15	17	150	193	100	Spring
BT04-200-12S	98	112	551	6-M08×18	64	G3/8	50	10	30	29	M22×2	20	24	150	210	100	Spring
BT04-300-12S	98	112	751	6-M08×18	64	G3/8	50	10	30	29	M22×2	20	24	150	210	100	Spring
BT04-200-24S	98	137	551	6-M08×18	64	G3/8	50	10	30	29	M22×2	20	24	180	235	100	Spring
BT04-300-24S	98	137	751	6-M08×18	64	G3/8	50	10	30	29	M22×2	20	24	180	235	100	Spring
BT08-200-12S	120	137	585	6-M10×20	88	G1/2	70	10	45	35	M30×2	25	36	180	260	100	Spring
BT08-300-12A	120	137	791	6-M10×20	88	G1/2	70	10	45	35	M30×2	25	36	180	301		Gas spring
BT15-250-12A	145	177	713	6-M16×25	100	G1/2	75	15	50	36	M30×2	25	41	220	366		Gas spring
BT15-250-24A	145	216	713	6-M16×25	100	G1/2	75	15	50	36	M30×2	25	41	270	405		Gas spring
BT20-250-12A	166	216	726	6-M20×30	115	G1/2	85	18	56	52	M39×2	35	46	270	426		Gas spring
BT30-250-12A	190	216	740	6-M20×30	132	G3/4	100	18	63	47	M39×2	35	55	270	452		Gas spring
BT50-200-12A	190	268	771	8-M20×35	150	G3/4	115	25	63	56	M42×2	40	55	330	574		Gas spring
BT75-200-12A	315	332	864	12-M24×45	200	G1	150	20	100	60	M64×2	60	85	380	722		Gas spring
BT100-200-12A	315	332	864	12-M24×45	200	G1	150	20	100	60	M64×2	60	85	380	722		Gas spring

For an industrial automation system integrator building an assembly line, what level of force control can be expected during press-fit operations?

The pneumohydraulic intensification structure uses pneumatic drive during the rapid approach stage and switches to hydraulic output during the working stroke. The pressing force is adjustable and stable, ensuring consistent and controllable press-fit performance on assembly lines.

In automated manufacturing cells, how does simplified piping improve reliability?

Reduced external oil piping and fittings lower the risk of leakage and system failures, improving overall operational reliability.
