Sandblasting & Powder Coating Package System
Request a Quote
This sandblasting and powder coating machine package offers complete surface finishing process from pre-treatment, powder coating to curing, including CL-1212FTA sandblasting cabinet, COLO-191S powder coating gun, COLO-S-1517 powder spray booth and COLO-1864 powder curing oven, which provides long-lasting and beautiful finish film for various kinds of objects

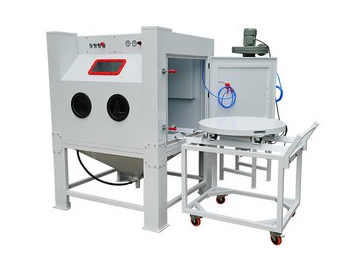

Sandblasting Cabinet CL-1212FTA
- Pretreatment equipment for powder coating is used to effectively remove rust, oil, old paintings, dirt from objects' surfaces that increase coating adhesion.
- Made of 3mm durable steel plate with coated surface, ensures longer lifespan.
- Engineered with turntable and cart for processing heavy or irregular products.
- An independent filter cartridge dust device eliminates dust from inner chamber.
- Blasting work is controlled via foot pedal, provides more safety and convenience.
- Supply with 1 pc blasting gun with boron carbide nozzle, a pair of blasting gloves and blasting hose.
| Model | CL-1212FTA |
| Outside size | L 1430 x W 1300 x H 1850 mm |
| Working size | L 1200 x W 1200 x H 800 mm |
| Voltage | 380V / 220V (customized) |
| Turntable | Dia. 800mm (Max. loading 200kg) |
| Door size | W 830 * H 770 mm |
| Motor power | 0.75 kw |
| Air requirement | Flow 0.5-1.2m3/min |
| Light | 18W fluorescent |
| Blast gun | 1 (aluminum alloy with boron carbide nozzle) |
| Air consumption | 5-8 bar(kg/cm2) |

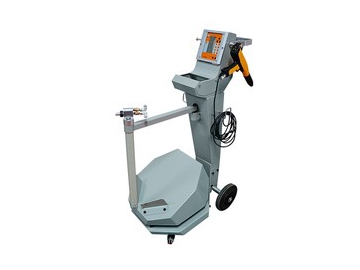

Powder Coating Gun COLO-191S
- Delivers excellent coating applications thanks to the latest and powerful technologies.
- Powder gun controller with DVC (digital valve control) technology, allows more precise adjustment on powder output and voltage, amperage, airflow, etc.
- 100kv powder spray gun maximizes the electrostatic charging, offering the highest transfer efficiency, and improving powder utilization.
- Smooth powder flow creates uniform coating coverage even on objects’ surfaces with depressions.
- Supply box feed type for frequent color change, and hopper type for single color.

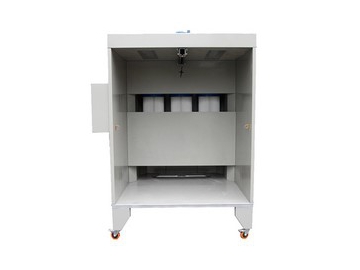

Powder Spray Booth COLO-S-1517
- Made of durable powder coated steel, the powder spray booth features easy to clean and simple color change.
- Multifunctional PLC controller enables users to set or adjust parameters in a convenient and precise manner.
- High performance filter recovery system (combines 3 pcs cartridge filters) achieves efficient use of powder, saving you money.
- Pulse-jetting filter cleaning system could prevent powder accumulation and maintain the peak performance.
| Model | COLO-S-1517 |
| Operating dimensions | W 1500 x D 1000 x H 1700mm |
| Overall dimensions | W1640 x D 2070 x H 2180mm |
| Weight | 480 kg |
| Power supply | Electric |
| Nominal power | 2.2 kw |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters no. | 3pcs (D325*H900 mm) |
| Hang type filters | Easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 4000 m 3/h |

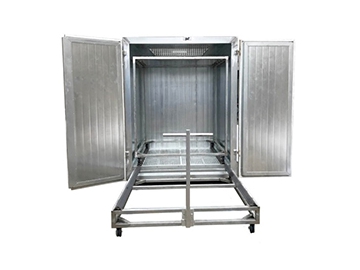

Powder Curing Oven COLO-1864
- Heating by electricity provides high-quality and long-lasting powder finish in shorter curing time.
- Oven wall is 100mm rock wool board with galvanized inner wall and color-steel outer wall for optimum insulation effect.
- Circulation fan cycles hot air in the oven chamber to ensure uniform heat distribution and minimal temperature difference, provides quality finishing film.
- Simple-operation PLC controller allows to accurately set the desired temperature, heating time and other parameters.
| Model | COLO-1864 |
| Operating dimensions | W 1600 x H 1800 x D 1400 mm |
| Overall dimensions | W 1900 x H 2200 x D 1700 mm |
| Power supply | Electric, 18kW |
| Voltage | 220V/380V |
| Frequency | 50-60 Hz |
| Warm-up time | 15-30min (180°C) |
| Temperature stability | < ± 3-5°C |
| Max. temperature | 250°C |
| Ventilation performance | 805-1677m 3 /h |
| Motor power | 0.75kW |
