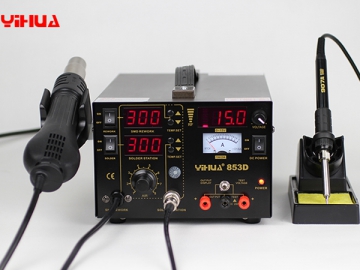

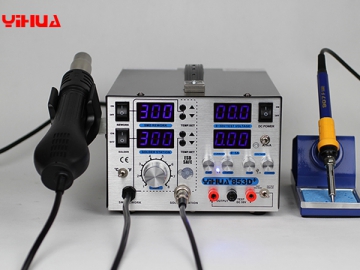

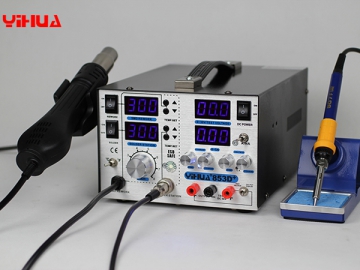

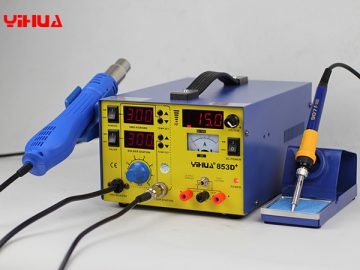

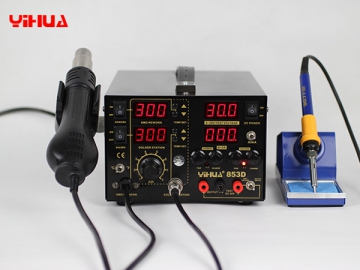

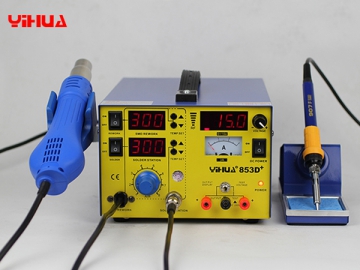

YIHUA-853DA/853D/853D Soldering Rework Station with Power Supply
Features
1. YIHUA-853DA/853D/853D soldering rework station with power supply is made with the latest SMD technology. It has a dual LED display to show the temperature of hot air gun and electric soldering iron. Coupled with the PID program, the temperature can be precisely controlled. Our equipment also has the advanced short circuit protection function. Furthermore, it can test the voltage and mobile RF signal.
2. The D type adopts the high power soldering iron heater and 15V3A power supply. It is suitable for the high-end users, and can meet the requirements of special application environment.

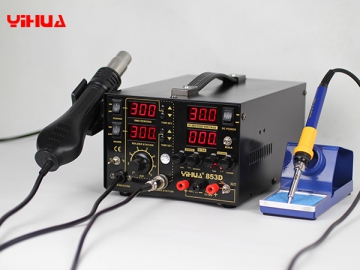

3. Our D 5A type is added with the 30V5A power supply, in addition to the hot air gun and electric soldering station. It is a multifunctional machine. The D 5A type is added with 30V 5A DC power supply and 0~49.9V test voltage, in addition to the hot air reworks and soldering iron. It is a multifunctional machine.

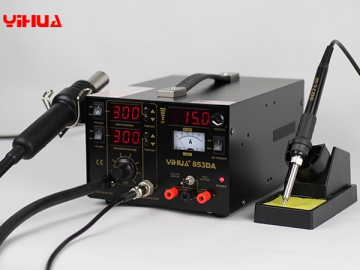

4. DA type and D type has the same functions. Differently, the DA air gun type is added with an air pump rather than a brushless fan.

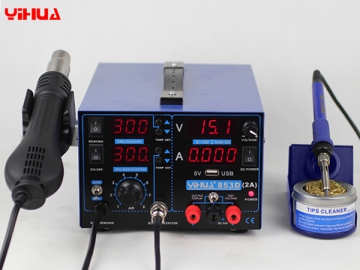

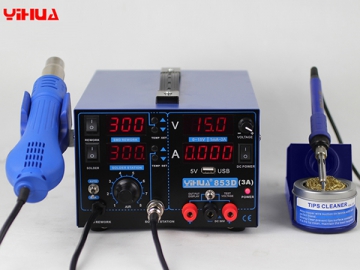

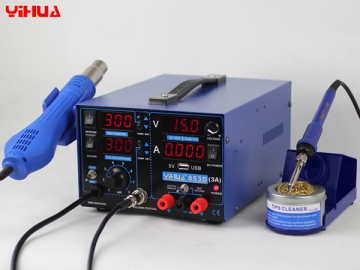

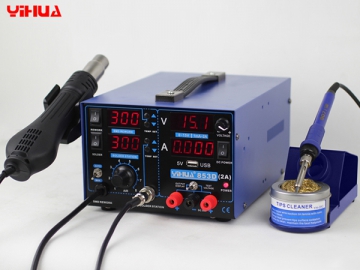

5. The 853D USB type is our new item, supporting power supply of: 0~15V/0~3A, 0~2A, 0~1A
1)The soldering rework station is fitted with a 2A/3A HAKKO heater, 75W soldering iron and a transformer with bigger power.
2)Soldering iron sleep mode function: When the soldering iron is in idle state for 10 minutes, it will enter into SLEEP MODE.
3)USB connection makes the soldering rework station convenient for connection with other equipment.
4)Instead of conventional pointer display, the rework station innovatively utilizes the LED digital display. Supporting 4-digit display, the display unit can display currents in both ampere (A) and milliampere (AM).
| Rated Voltage | AC 220V±10% 50Hz | |
| Power | ≤800W | |
| 300 ℃Thermostat power of (high-speed PID programmable energy saving) | 250W ±10% | |
| Working Environment | 0 ~ 40℃ relative humidity < 80% | |
| Storage Environment | -20 ~ 80℃ relative humidity < 80% | |
| Dimensions | 255*188*125mm | |
| Weights | 853D1A:4.06KG 853DA 1A: 5.25KG | |
| Parts | ||
| Item | Hot air rework | Soldering iron |
| Working Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 550W / 700W | 50W |
| Temperature Range | 100℃ ~ 480℃ | 200 ℃~ 480 ℃ |
| Airflow Type(853D) (853DA) | Brushless fan Diaphragm pump | --- |
| Air Flow(853D) (853DA) | 120L/min 28L/min (Max.) | --- |
| Temperature Stability | ±2℃ (Static) | ±2℃ (Static) |
| Display Type | Red / green LED display | Red / green LED display |
| Temperature Correction Type | The PID digital program proofreading | The PID digital program proofreading |
| PID Temperature Correction Cycle | Rapidly 20ms | High-speed 100ms |
| Heating Elements | Ceramic skeleton heater | Common heater |
| Tip Ground Impedance | --- | < 2Ω |
| Tip of Ground Voltage | --- | < 2mV |
| DC Power Supply | ||
| Output Voltage | 0-15V/0-30V | |
| Output Current | 0-1A/0-3A/0-5A | |
| Protection Type | Short-circuit over-current | |
| Voltage Display Type | red/ green LED display | |
| Current Display Type | Pointer display | |
| Load Stability | <0.01 ±2mv | |
| Ripple dB | <1mvrms(virtual value) | |
Application
YIHUA-853DA or YIHUA-853D soldering rework station with power supply is ideal for various electronic components soldering or desoldering, for instance, SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. It is also suitable for other purpose, including thermoshrinking, paint drying, adhesive removal, thawing, warming, plastic welding, etc.
This soldering rework station is chiefly applied in the following fields:
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
