Description

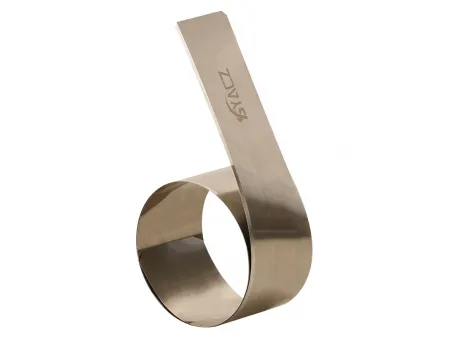

Made using 4028MO stainless steel, the SL-35 doctor blade offers outstanding corrosion resistance and anti-rust performance when compared to the SL-45 model, however, its abrasion resistance falls short of the SL-45 blade. Therefore, this doctor blade is suitable for occasions requiring high corrosion resistance and minimal requirements for abrasion resistance.

The SL-35 doctor blade features a delicate microstructure and dense grain distribution to ensure a slow and even wear, which prevents the ink from becoming polluted. The SL-35 doctor blade is suitable for ink with a high pH content, such as water based ink and coatings.

Parameter
4028MOelement content
C Mn Si P S Cr Mo
0.36 0.45 0.40 0.030 0.020 13.50 1.00

Tensile strength: 1700-1900 N/mm2
Hardness: 560-580HV
Linearity: 0.15mm/1m

Advantages
  • A heat treatment process prevents wear and oxidation of the blade edge.
  • Less granules resulting from blade wear at high speed printing reduces ink pollution levels.
  • Compared to a standard doctor blade, the SL-35 is made of stainless steel for a better oxidation and corrosion resistance and a longer lifespan.
  • The SL-35 stainless steel doctor blade is less expensive.
Type
Size(width) Maximum speed Thickness(base material) Package
10mm 250m/min 0.152-0.203mm 100m/box
30mm 250m/min 0.152-0.203mm 100m/box
40mm 250m/min 0.152-0.203mm 100m/box
50mm 250m/min 0.152-0.203mm 100m/box
60mm 250m/min 0.152-0.203mm 100m/box

Note: The above data is standard sizes only. We can customize blade sizes according to customer requirements.

Application
Printing machine: HP, Heidelberg, Koenig&Bauer AG, Komori, Beiren, Manroland, RMGT, etc.
Coating machine: Joinfun, Graco, SATA, Anest Iwata, Hongda, etc.
Rotary printing machine: Dingli, Lisheng, Zhishang, Hengfan, Nashuo, etc.
