Enhanced Carbon Steel Doctor Blade, Item CL-40 Doctor Blade

Enhanced Carbon Steel Doctor Blade, Item CL-40 Doctor Blade
Enhanced Carbon Steel Doctor Blade, Item CL-40 Doctor Blade
Enhanced Carbon Steel Doctor Blade, Item CL-40 Doctor Blade
Enhanced Carbon Steel Doctor Blade, Item CL-40 Doctor Blade
Request a Quote
Features
  • The doctor blade is made with the newest high quality carbon steel from Germany, ensuring excellent wear-resistance.
  • This carbon steel doctor blade is suitable for gravure and flexo printing, with gravure printing speed ≤350m/min, flexo printing speed ≤400m/min.
  • The specially polished blade guarantees smooth and excellent sharp doctoring, good performance to resist inks contaminated with particles.
  • This ribbon blade is combined with holder for use. The doctor blade can be changed within 10 seconds, saving 30% cost at least. Compared with wider blade, its flexibility and stiffness are better.
  • After testing, the printing on the flexible packaging can reach more than 50,000m using this doctor blade.
Parameters
Brand DEKEJIE Category Standard carbon steel doctor blade
Type CL-40 Printing speed ≤350m/min
Material thickness 0.152-0.203mm Packing 100m/box
Suggested application Flexible packaging printing
Standard size 10, 14, 15, 20, 30, 40, 50, 60mm

Hardness HV: 600-620
Straightness: max. 0.15mm/1m
Tensile strength: 1850 -2000 Mpa

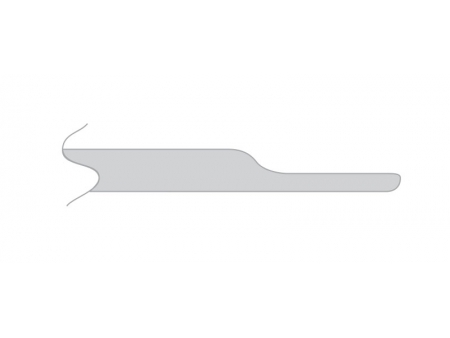

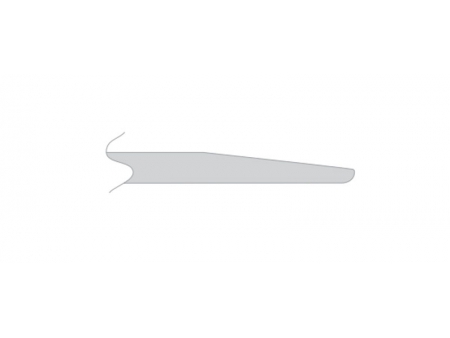

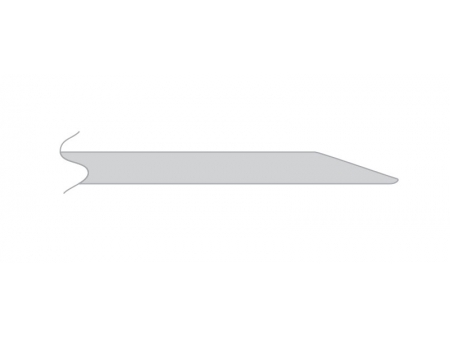

Blade profile
  • Standard lamella
  • Bevel
  • Wing lamella
