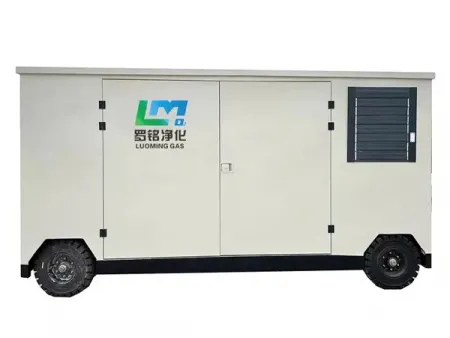

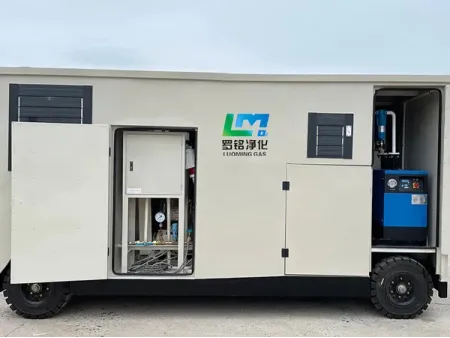

Trailer Type Oxygen Generation System
Request a Quote
Custom-Built PSA Oxygen Generator
The trailer-mounted oxygen generator utilizes Pressure Swing Adsorption (PSA) technology to extract oxygen from ambient air, serving as a fully integrated mobile oxygen production system.
Technical Specifications
- Oxygen capacity: 1-30Nm³/h (standard conditions)
- Oxygen purity: 93%±2% (per Chinese National Standard)
- Outlet pressure: 0.1-0.55MPa (gauge, adjustable)
- Oxygen dew point: ≤-40°C (at atmospheric pressure)
Process Description
- Feed Air Pretreatment
Ambient air passes through filters to remove dust, moisture, and oil mist, preventing contamination of the molecular sieve. - Pressurized Adsorption
Clean air is compressed and introduced into adsorption towers filled with molecular sieve. Nitrogen is preferentially adsorbed, while oxygen passes through the adsorption bed as oxygen-enriched gas. - Depressurization and Desorption
After nitrogen adsorption reaches saturation, the operating tower switches to depressurization. Adsorbed nitrogen is released, restoring adsorption capacity and enabling cyclic operation. - Oxygen Purification and Storage
Separated oxygen undergoes pressure stabilization and fine filtration, then is stored in an integrated buffer tank to support continuous oxygen supply.
Technical Parameters
| Model | Purity | Flow rate (Nm³/h) | Inlet nominal diameter | Outlet nominal diameter | Outlet pressure (MPa) |
| 93%±2% | 3 | DN15 | DN15 | 0.1-0.55 | |
| 93%±2% | 5 | DN15 | DN15 | 0.1-0.55 | |
| 93%±2% | 10 | DN25 | DN25 | 0.1-0.55 | |
| 93%±2% | 15 | DN40 | DN25 | 0.1-0.55 | |
| 93%±2% | 20 | DN40 | DN25 | 0.1-0.55 | |
| 93%±2% | 25 | DN40 | DN25 | 0.1-0.55 | |
| 93%±2% | 30 | DN40 | DN25 | 0.1-0.55 |
