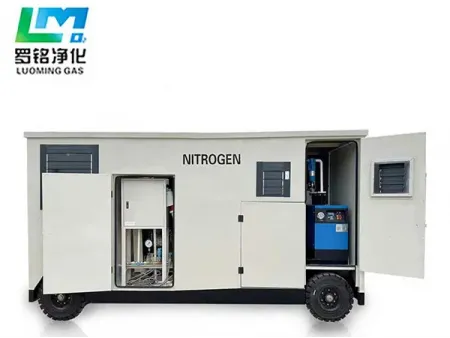

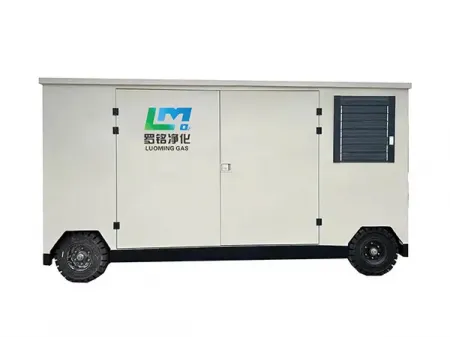

Trailer Type PSA Nitrogen Generation System
Request a Quote
Custom-Built PSA Nitrogen Generator
The mobile trailer-based PSA nitrogen generator produces nitrogen through pressure swing adsorption (PSA) technology using clean compressed air as the feed gas. Nitrogen is separated from oxygen by molecular sieve adsorption, while the trailer structure provides mobility without altering the core nitrogen generation principle.
Technical Specifications
- Nitrogen capacity: 1-30Nm³/h
- Nitrogen purity: 95%-99.9995%
- Outlet pressure: 0-0.65MPa (adjustable), other pressure ranges available on request
- Atmospheric dew point: ≤-40°C (standard)
Process Description
- Feed air pretreatment removes oil, moisture, and impurities from compressed air, ensuring clean inlet conditions for adsorption.
- Pressurized adsorption enables molecular sieve to preferentially adsorb oxygen and trace impurities, while nitrogen accumulates in the gas phase due to slower diffusion rate and lower adsorption capacity at a specified pressure.
- Depressurization desorption releases adsorbed oxygen and impurities after saturation, enabling regeneration.
- Alternating adsorption and regeneration cycles are managed by a PLC to coordinate valve switching sequences across two or more adsorption towers, ensuring continuous nitrogen output.
Key Design Notes
- The trailer structure serves solely as a mobile carrier and does not alter the PSA nitrogen generation principle.
- Nitrogen purity and outlet pressure are configurable based on application requirements, with maximum nitrogen purity up to 99.9995%.
Key Features
- High nitrogen purity with maximum purity up to 99.9995%.
- Rapid startup with qualified nitrogen available within 30 minutes.
- Online monitoring and display of nitrogen purity, flow rate, and pressure.
- Fully automatic control supporting unattended operation.
- Skid-mounted integrated structure with compact footprint and convenient installation.
- Customized pressure and dew point options, with dew point down to -70°C available.
