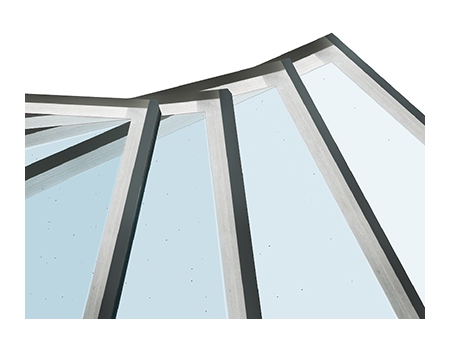

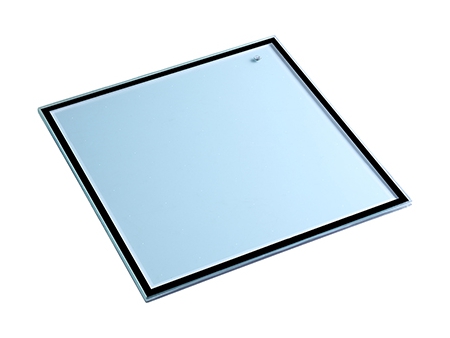

Vacuum Insulating Glass (VIG)

Designed to maximize the benefits of vacuum insulation by combining advanced materials and cutting-edge manufacturing techniques. Made of low-emissivity coated tempered glass, high-performance desiccants, and lead-free alloy flexible solder, VIG offers exceptional thermal insulation while staying transparent—a great fit for modern architecture and energy-efficient building systems.

VIG is sealed in a high-vacuum environment, unlike conventional insulated glass, therefore guaranteeing exceptional thermal performance without requiring air extraction apertures. Ideal for ultra-thin, energy-efficient windows, this creative design lowers air leakage and provides a degree of insulation equivalent to, or even better than, walls with far thicker insulating layers.

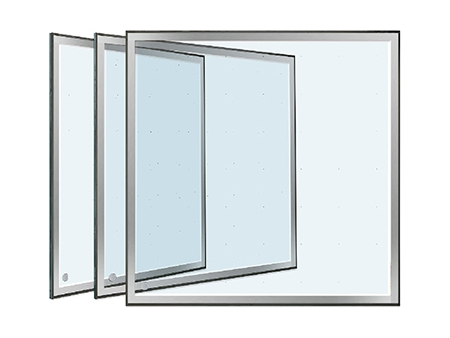

What the Features of Vacuum Insulating Glass (VIG)

  • Low-E coated glasses
  • Polymer structure sealing layer
  • Alloy vacuum sealing layer
  • Micro strut (0.5mm)
  • Tempered glass
  • Degasser
  • Lead-free alloy sealing. Sealed with lead-free alloy flexible solder for durability and environmental safety.
  • No air extraction port. Double-sealed for superior high-vacuum performance, eliminating air leakage and improving insulation efficiency.
  • Exceptional thermal efficiency. With a heat transfer coefficient comparable to walls, VIG acts as transparent ultra-thin 'walls' in architectural applications, offering optimal insulation without compromising aesthetics.

Specifications

Model Structure Heat Transfer Coefficient (W/m²·K) Visible Light Total Solar Transmittance (g) Sunshade Coefficient (sc) Weighted Sound Insulation (db)
Transmittance (%) Outdoor Reflectivity (%) Intdoor Reflectivity (%)
XTSLE 0.5V YTC 0.6~0.8 40-70 < 30 < 30 0.35-0.5 0.4-0.6 36-40
XTSLE 0.5V YTC 0.4-0.6 40-70 < 30 < 30 0.3-0.5 0.4-0.58 36-40

Get in Touch!

If you’re curious or need further details, . Our team is excited to assist you!

Application Examples

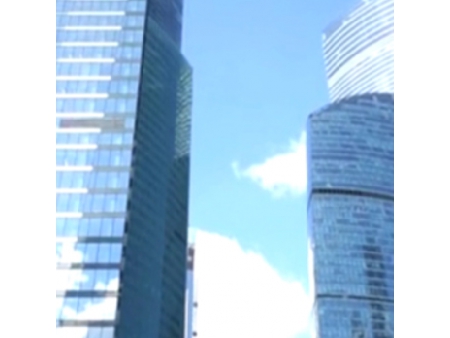

Building exterior Wall

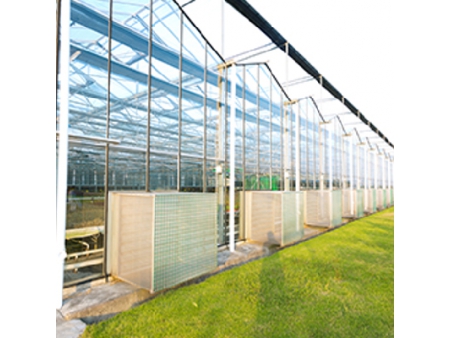

Modern Greenhouse

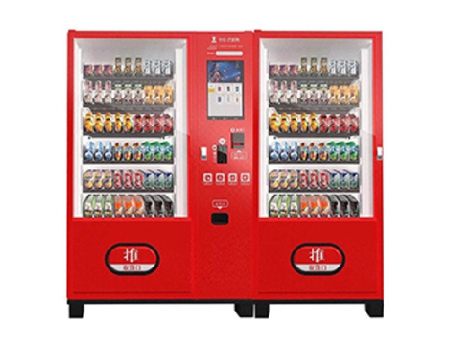

Visual Vending Machine

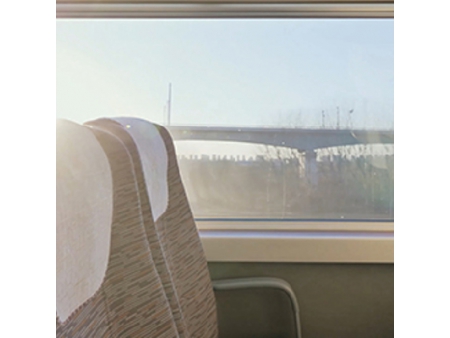

Railway Window

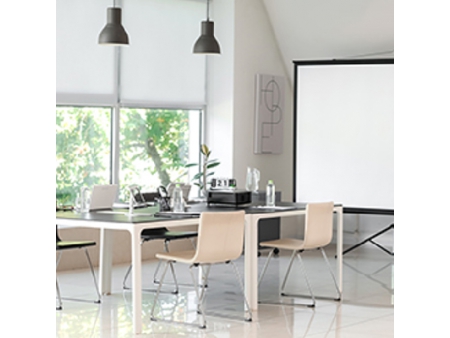

Magnetic Whiteboard
