Request a Quote

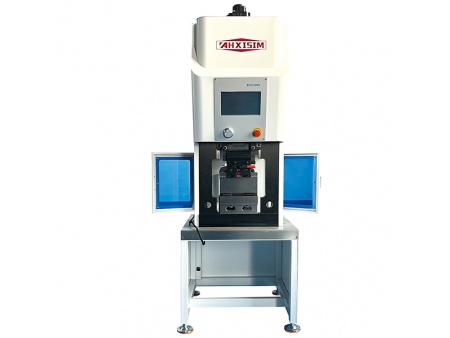

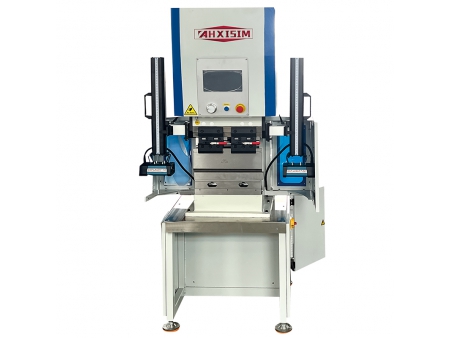

The single electric cylinder design simplifies the machine structure, reducing costs and making it ideal for small-scale production workshops or environments requiring flexible operation. It is particularly suited for smaller workpieces and basic bending tasks.

Bending Capabilities
Material Carbon steel, alloy steel, aluminum alloy, copper alloy, high-speed steel, carbide alloy
Length 10-800mm
Width 10-250mm
Thickness 0.5-6mm
Angle 0-180 degrees
Accuracy 0.1-0.3mm
Shapes V Shape, U Shape, Z Shape, L Shape

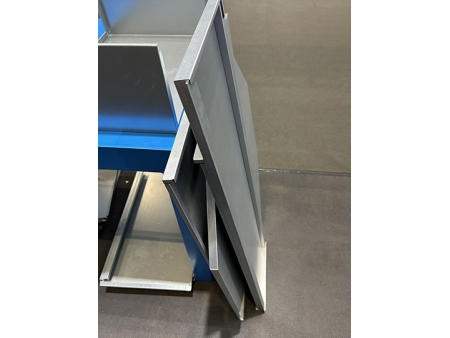

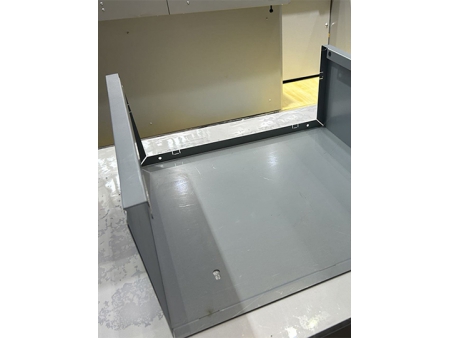

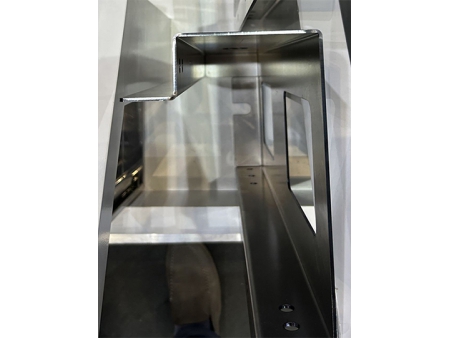

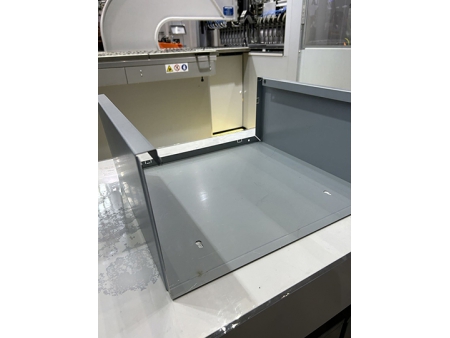

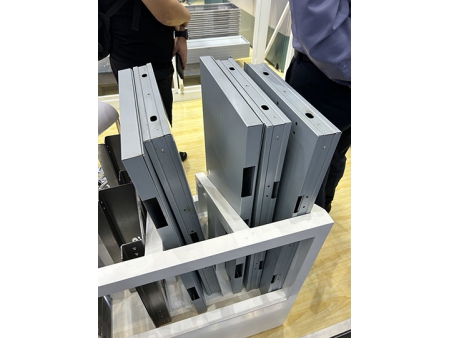

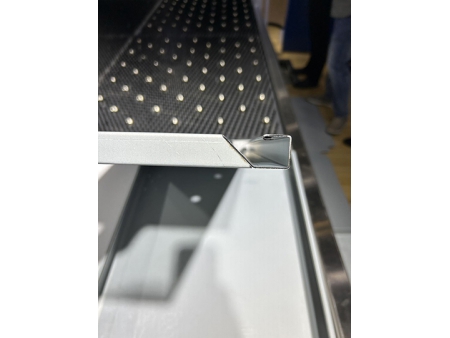

Examples of Our Processed Sheet Metal Products
Technical Parameters
Model
Nominal Pressure (kN) 30 60 120 180
Workbench (mm) 200 400 600 800
Column Spacing (mm) 296 370 520 720
Throat Depth (mm) 150 180 200 250
Slide Stroke (mm) 120 120 120 120
Max. Opening Height (mm) 420 420 420 450

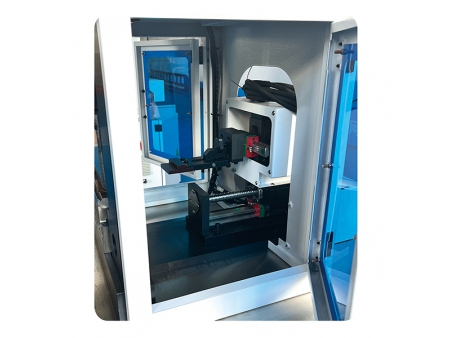

Backgauge Stroke (mm) 150 180 200 350
Max. Speed of Slider (mm/s) 200 200 200 200
Main Motor Power (kW) 2 3 5.5 7.5
Number of Axes (mm) 3 (X, Y, R) 3 (X, Y, R) 3 (X, Y, R) 3 (X, Y, R)
Dimensions (L*W*H) (mm) 600*670*1700 750*800*2000 1000*970*2100 1000*970*2100
Weight (kg) 550 750 1150 1800
Features
    1. Powered by a servo motor-driven electric cylinder, the system consumes minimal energy during rapid descent and return strokes. Compared to hydraulic press brakes, it reduces energy consumption by over 50%.

    1. With electric cylinder technology, there is no hydraulic oil, eliminating the risk of leaks and ensuring a clean and tidy workspace.

    1. The combination of servo motors and ball screw control significantly enhances the machine’s cycle efficiency, doubling productivity compared to hydraulic press brakes.

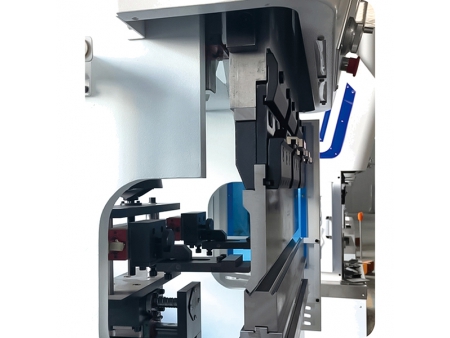

    1. The servo motor and high-precision ball screw enable accurate vertical movement of the slide, maintaining long-term positioning accuracy even during continuous operation.
