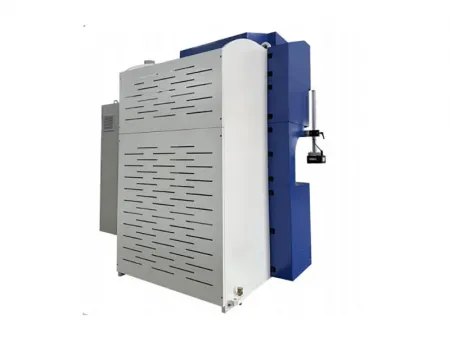

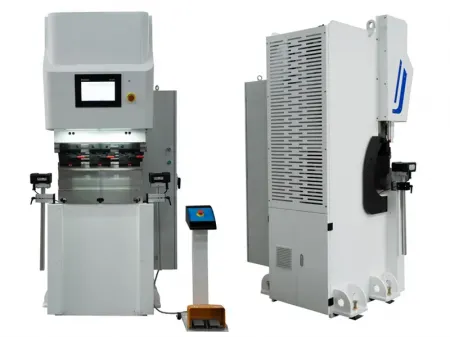

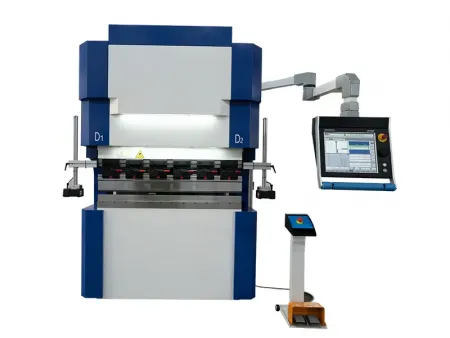

Electric Press Brake

Request a Quote

View All: http://metalworking-machine.com/1-5-electric-press-brake.html

Sheet metal bending machine operating with 100% electric power for high precision processing of small metal parts

Key Specs

Model	Bending force	Bending length
3T-200m	30KN	200mm
6T-400mm	60KN	400mm
12T-600mm	120KN	600mm

Features
Specifications
Examples
Components

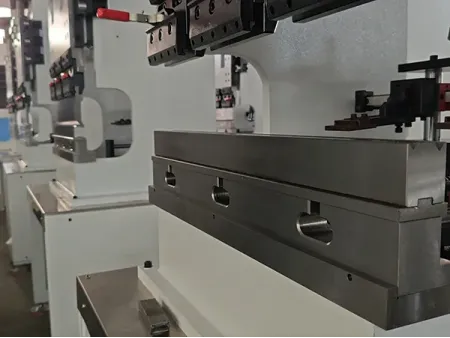

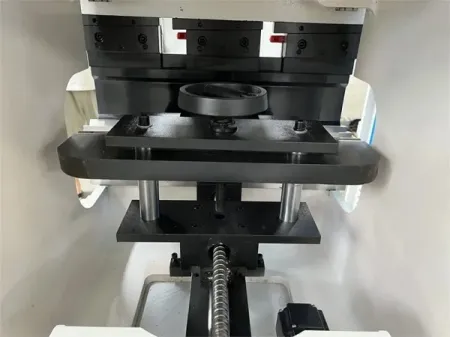

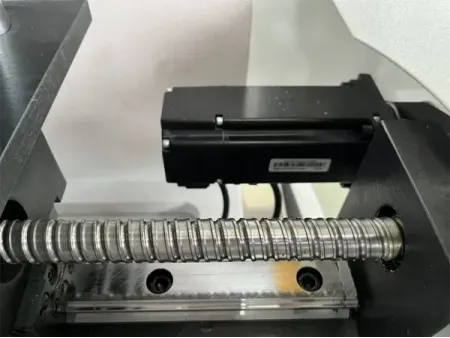

This electric press brake features a direct drive system where the servo motor powers the screw rod, ensuring rapid response and high transmission accuracy. It is specifically engineered for bending metal materials and is extensively used in applications such as consumer electronics, high-end switch cabinets, stainless steel medical equipment, household appliance metal shells, and other high-precision sheet metal products.

Features

Eco-Friendliness: Operates cleanly without pollution, eliminating the need for hydraulic oil and promoting energy efficiency.
High Efficiency and Speed: The servo motor provides faster operational speeds and precise bending, significantly reducing cycle times compared to electro-hydraulic models.
Energy Saving: Offers substantial electricity savings, potentially reducing energy use by 30%-50% annually.
Low Maintenance: Requires minimal upkeep with no regular oil changes needed, while the servo motor enhances the press brake's precision and stability.

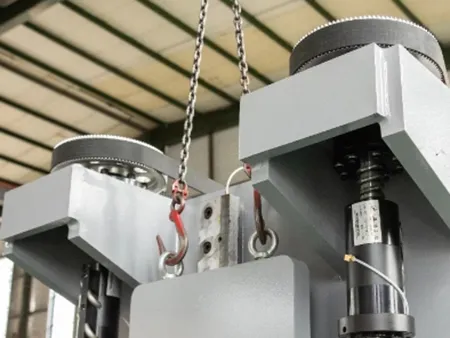

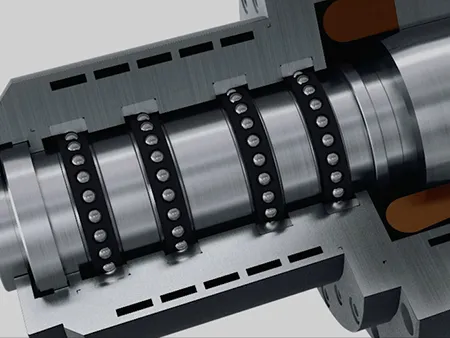

Innovative Design: Features an electric cylinder drive from the RZ series, utilizing our patented heavy-duty, high-precision ball screw technology for enhanced accuracy and extended lifespan.

Specifications

Model	Bending force (Ton)	Working table length (mm)	Ram stroke (mm)	Back gauge stroke (mm)	Axis	Power (kW)	Throat depth (mm)	Distance between uprights (mm)
RZ03-02	3	230	120	150	2	2	/	250
RZ06-04	6	400	120	150	2	3	150	370
RZ12-06	12	600	120	150	2	5.5	150	520
RZ20-10	20	1050	120	300	4	11	250	930
RZ30-12	30	1250	150	500	4	13	250	1150
RZ40-13	40	1300	150	500	6	15	300	1200
RZ60-25	60	2500	150	500	6	30	350	2300

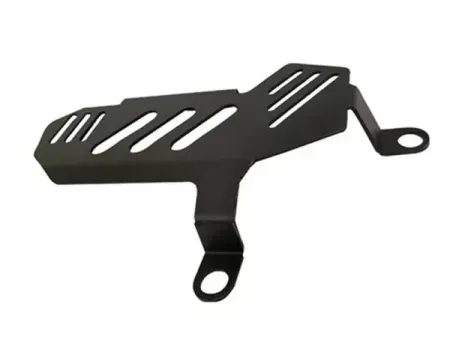

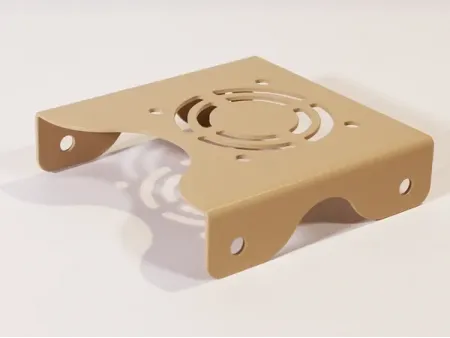

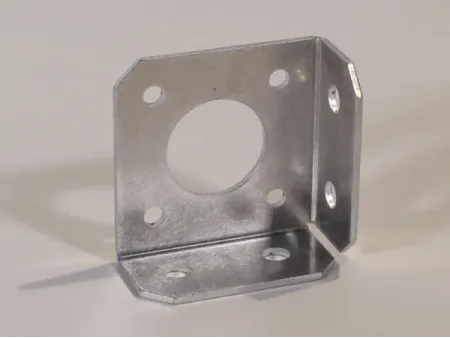

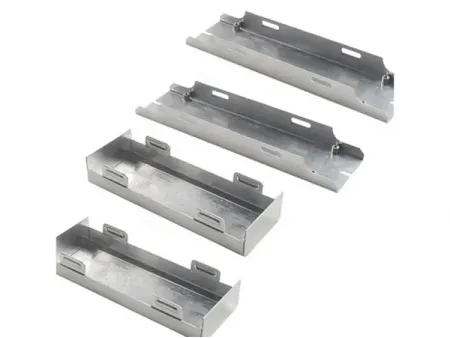

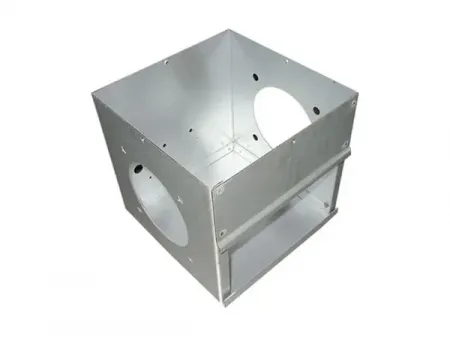

Examples of Metal Parts

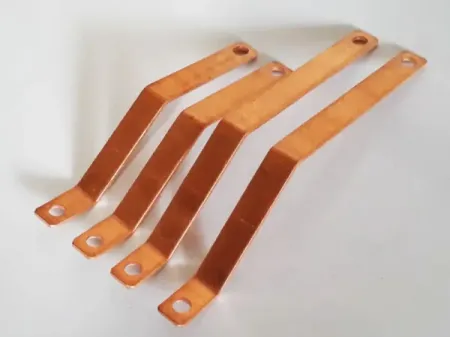

Copper Bar
Color Steel
Stainless Steel
Galvanized Sheet
Color Steel
Aluminium

Components

Details

Standard Configurations

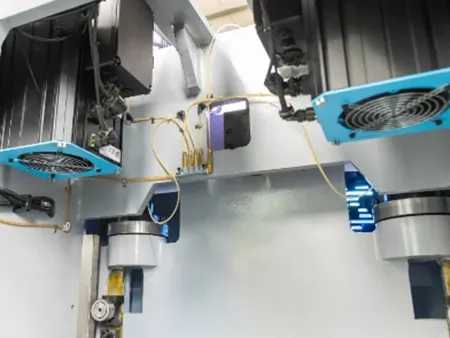

Main motor: Sanyo

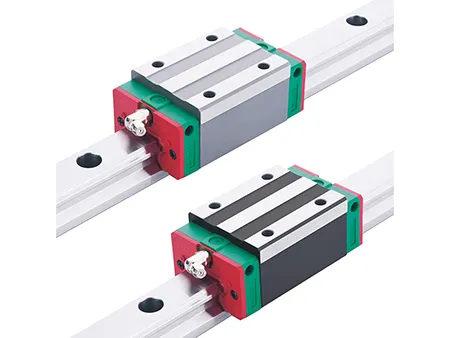

Linear guide: HIWIN

Ball screw: TBI

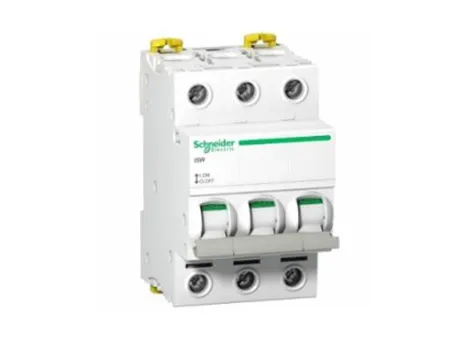

Electrical equipment: Schneider

Bearing: NSK

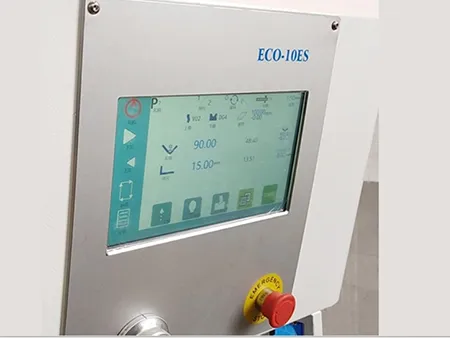

Control system: ECO-10ES

Controllers

Delem DA66T
Delem DA58T
ET15
Delem DA53T
