CNC Servo Electric Press Brake
EPP Series
EPP Series

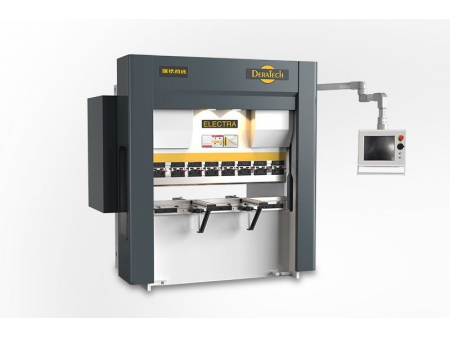

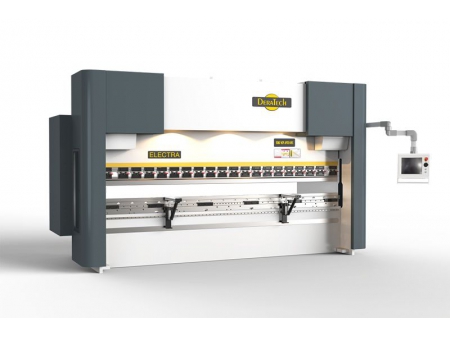

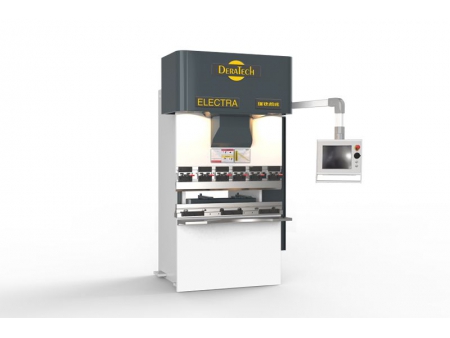

EPP Series CNC servo electric press brake is a newly-developed electric servo bending machine, which overcomes the limitations of previous electric servo models. It is also our company's patented invention (ZL202011465863.8), with many features and innovative advantages that meet current market demand:
- The combination of high-performance servo motor and high-load ball screw ensures high bending accuracy, high energy conversion efficiency and a pressing speed of up to 60mm/s.
- The automatic lubrication system effectively protects the transmission components and reduces mechanical failures.
- Free of the troubles of oil leakage in traditional bending machines, resulting in low maintenance costs.
- EPP-35/1250
Electric Press Brake - EPP-50/1650
Electric Press Brake - EPP-130/4100
Electric Press Brake
- Processing of aluminum curtain walls
- Stainless steel bending processing

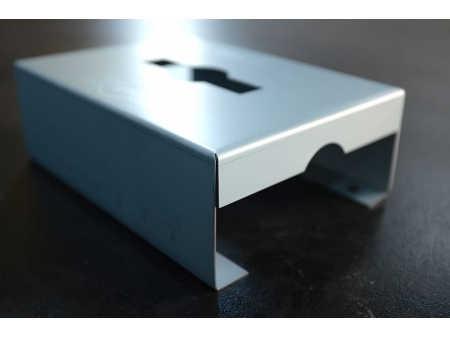

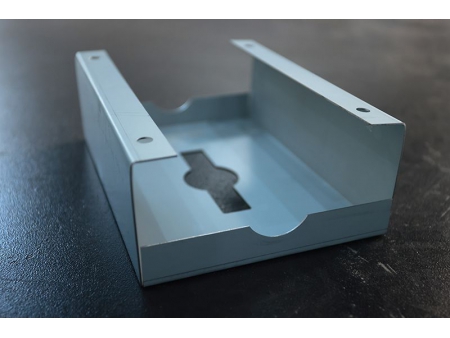

- Enclosure/Cabinet bending processing
- Kitchenware bending
- Processing of agricultural machinery components
- Vehicle maintenance
- Engineering machinery component processing
- Elevator component processing
- Processing of small home appliances (including lighting fixtures)
(bending capacity: 30 to 160 ton)
| Model | Force (kN) | A | B | C | D | E | Average power (kW) | X axis stroke (mm) | R axis stroke (mm) | Max. speed (mm/s) | Dimensions (L*W*H) (mm) | Weight (kg) | ||
| Max. bending length (mm) | Distance between uprights (mm) | Throat depth (mm) | Cylinder stroke (mm) | Opening height (mm) | Approaching | Working speed | Returning speed | |||||||
| 300 | 1250 | 900 | 200 | 180 | 430 | 1.1 | 450 | 100 | 200 | 0-30 | 200 | 1650*1450*2610 | 3500 | |
| 400 | 1300 | 900 | 300 | 200 | 470 | 2.3 | 450 | 100 | 200 | 0-30 | 200 | 1880*1610*2490 | 4400 | |
| 500 | 1650 | 1200 | 300 | 200 | 470 | 2.4 | 450 | 100 | 200 | 0-30 | 200 | 2180*1610*2490 | 4800 | |
| 600 | 2050 | 1700 | 300 | 200 | 470 | 2.6 | 450 | 200 | 200 | 0-30 | 200 | 2680*1610*2560 | 5400 | |
| 700 | 2500 | 2000 | 300 | 200 | 470 | 2.7 | 450 | 200 | 200 | 0-30 | 200 | 2990*1610*2545 | 6800 | |
| 1100 | 2500 | 2000 | 400 | 250 | 525 | 3.9 | 600 | 200 | 200 | 0-30 | 200 | 3000*1860*3035 | 10200 | |
| 1100 | 3200 | 2700 | 400 | 250 | 525 | 3.9 | 600 | 200 | 200 | 0-30 | 200 | 3900*1860*3035 | 11600 | |
| 1100 | 4100 | 3600 | 550 | 250 | 540 | 3.9 | 600 | 200 | 200 | 0-30 | 200 | 4800*2010*3050 | 13500 | |
| 1300 | 2500 | 2000 | 400 | 250 | 525 | 4.8 | 600 | 200 | 200 | 0-30 | 200 | 3000*1860*3035 | 10300 | |
| 1300 | 3200 | 2700 | 400 | 250 | 525 | 4.8 | 600 | 200 | 200 | 0-30 | 200 | 3900*1860*3035 | 11700 | |
| 1300 | 4100 | 3600 | 550 | 250 | 540 | 4.8 | 600 | 200 | 200 | 0-30 | 200 | 4800*2010*3050 | 13900 | |
| 1300 | 5100 | 4600 | 550 | 250 | 540 | 4.8 | 600 | 200 | 200 | 0-30 | 200 | 5600*2010*3050 | 17000 | |
| 1300 | 6100 | 5600 | 550 | 250 | 540 | 4.8 | 600 | 200 | 200 | 0-30 | 200 | 6800*2010*3120 | 19200 | |
| 1600 | 2500 | 2000 | 400 | 250 | 525 | 4.8 | 600 | 200 | 150 | 0-30 | 150 | 3000*2000*3150 | 11800 | |
| 1600 | 3200 | 2700 | 400 | 250 | 525 | 4.8 | 600 | 200 | 150 | 0-30 | 150 | 3900*2000*3150 | 13200 | |
| 1600 | 4100 | 3600 | 400 | 250 | 525 | 4.8 | 600 | 200 | 150 | 0-30 | 150 | 4800*2000*3150 | 15500 | |
| 1600 | 5100 | 4600 | 400 | 250 | 525 | 4.8 | 600 | 200 | 150 | 0-30 | 150 | 5600*2010*3200 | 19000 | |
| 1600 | 6100 | 5600 | 400 | 250 | 525 | 4.8 | 600 | 200 | 150 | 0-30 | 150 | 6800*2010*3250 | 21000 | |
Note: 1 The workbench with ★ in the upper right corner has no mechanical compensation device
- Precision Quick Clamping Device
Equipped with precision quick clamps, it effectively reduces the time required for tooling changes, improves production efficiency, and has a higher load-bearing capacity.
- Lightweight and compact aluminum alloy backgauge structure
Standard configuration for 25-35 ton model
- Precise and stable backgauge structure
Standard configuration for 50-130 ton model
- Mobile front pallet
Standard configuration for 100-130 ton model
- Fixed pallet: Lightweight and compact, easy to move
Standard configuration for 50-70 ton model
- High-precision mechanical compensation device
Equipped with a high-precision wedge compensation system controlled by a CNC system, it provides precise compensation to ensure stable bending accuracy.
- Measurement unit
Equipped with a highly regarded European grating ruler with a resolution of up to 5um, this unit can achieve high-precision synchronous detection of bending accuracy.
- Self-lubricating system
It prevents ball screw wear, provides protection against surface corrosion, and ensures a tight seal against dust.
- Special connection mechanism between upper slider and ball screw
The upper slide plate is connected through a special mechanism to effectively protect the core moving component, the ball screw, ensuring smooth operation of the machine.
- Multi-Drive Combined Transmission Structure Technology
Due to factors such as load impact, deformation, and biased load, electric servo press brakes are typically limited to small tonnage. To achieve larger tonnage capabilities, there are still certain technical bottlenecks. However, we have successfully applied the innovative multi-drive combined drive structure technology, which significantly enhances the payload capacity of press brakes. This breakthrough further expands the application scope of electric servo technology in the sheet metal bending industry.
- Switzerland CYBELEC CybTouch 12
12 inch touch screen
DH15P CNC Press Brake System
