Swimming Pool Pump, CB-P100
Request a Quote

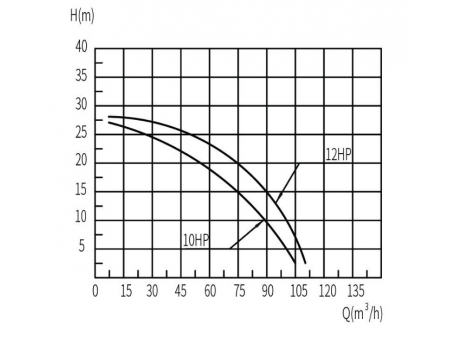

Performance Curve
Working Conditions
- Medium temperature: 5-60℃
- Environmental temperature: ≤40℃
- Humidity: 65% RH
- Maximum working pressure: 6bar
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (m³/h) | Inlet A (mm) | Outlet B (mm) | Insulation class | Gross weight (kg) | |
| kW | HP | |||||||||
| CB-P100 | 380V/50Hz | 7.5 | 10.0 | 2850 | 27 | 105 | 125 | 80 | F | 75 |
| CB-P120 | 380V/50Hz | 9.0 | 12.0 | 2850 | 28 | 110 | 125 | 80 | F | 87 |
Packing: 1070mm×420mm×600mm
