Swimming Pool Pump, CB-P50
Request a Quote

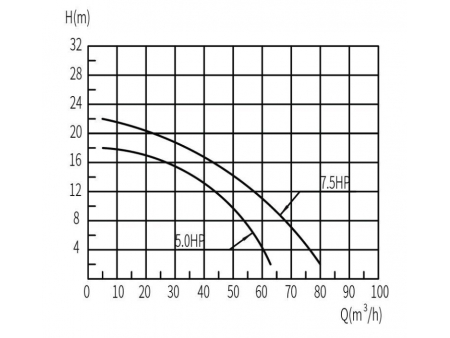

Performance Curve
Working Conditions
- Medium temperature: 5-60℃
- Environmental temperature: ≤40℃
- Humidity: 65% RH
- Maximum working pressure: 6bar
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (m³/h) | Inlet A (mm) | Outlet B (mm) | Insulation class | Protection grade | Gross weight (kg) | |
| kW | HP | ||||||||||
| CB-P50 | 380V/50Hz | 3.7 | 5.0 | 2850 | 18 | 65 | 80 | 80 | F | IP X5 | 52 |
| CB-P75 | 380V/50Hz | 5.5 | 7.5 | 2850 | 22 | 80 | 80 | 80 | F | IP X5 | 61 |
Packing: 860mm×350mm×500mm
