Swimming Pool Pump, CB-P150
Request a Quote

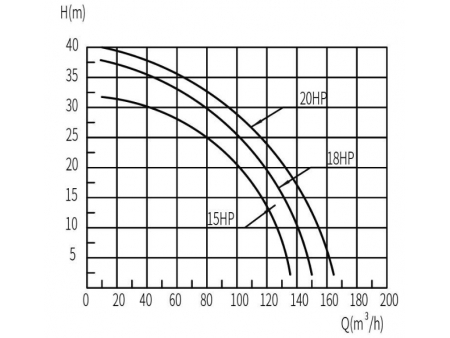

Performance Curve
Working Conditions
- Medium temperature: 5-60℃
- Environmental temperature: ≤40℃
- Humidity: 65% RH
- Maximum working pressure: 6bar
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (m³/h) | Inlet A (mm) | Outlet B (mm) | Insulation class | Gross weight (kg) | |
| kW | HP | |||||||||
| CB-P150 | 380V/50Hz | 11.0 | 15.0 | 2850 | 32 | 135 | 125 | 125 | F | 112 |
| CB-P180 | 380V/50Hz | 13.0 | 18.0 | 2850 | 38 | 150 | 125 | 125 | F | 123 |
| CB-P200 | 380V/50Hz | 15.0 | 20.0 | 2850 | 40 | 165 | 125 | 125 | F | 160 |

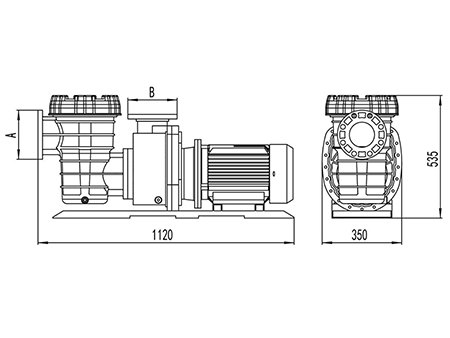

Packing: 1220mm×450mm×620mm
