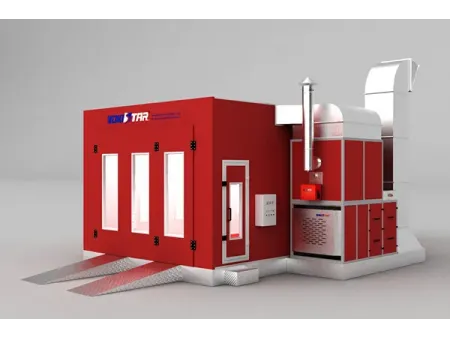

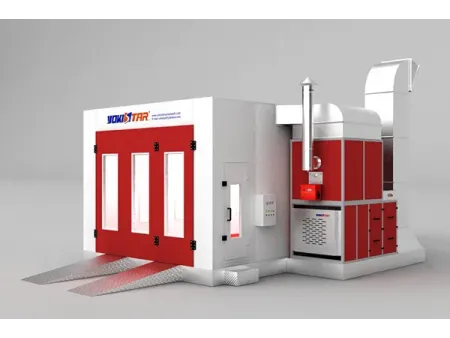

Automotive Paint Booth (Middle-Level Paint Booth)
Request a Quote
Ojade Series
Industrial spray booths for car refinishing
The Ojade series includes mid-level automotive paint booths designed with a full grating layout, sidelights for brighter working conditions, and a 7.5 kW exhaust motor suitable for standard refinishing work in busy workshops.
- Internal dimensions
6,900 × 3,900 × 2,650 mm (L × W × H) - External dimensions
7,000 × 5,350 × 3,400 mm (L × W × H)
Model Comparison
Ojade-O
Motor and Fan (Makeup Air Units)
- Motor type: motor mounted inside the fan housing
- Qty: 2 pcs
- Motor power: 4 kW × 2
- Total power: 8 kW
- Fan type: double-intake centrifugal fan (YDW-4.5L)
- Air volume: 25,000 m³/h
Motor and Fan (Exhaust Air Units)
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: double-intake centrifugal fan (YDW-5.6M)
- Total airflow: 20,000 m³/h
Exhaust Air Filtration
- Fiberglass filter: G3 grade (EN779), model PA-50
- Activated carbon filter: granular type (KC-8.0), installed in an "M"-shape filter frame
Ojade-B
Motor and Fan (Makeup Air Units)
- Motor type: belt-drive
- Qty: 2 pcs
- Motor power: 4 kW × 2
- Total power: 8 kW
- Fan type: double-intake centrifugal fan (TAE-400-H)
- Air volume: 25,000 m³/h
Motor and Fan (Exhaust Air Units)
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: double-intake centrifugal fan (TAE-450-H)
- Total airflow: 20,000 m³/h
Exhaust Air Filtration
- Fiberglass filter: G3 grade (EN779), model PA-50
- Activated carbon filter: granular type (KC-8.0), installed in an "M"-shape filter frame
Ojade-T
Motor and Fan (Makeup Air Units)
- Motor type: direct-drive
- Qty: 1 pc
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: single-intake turbo fan
- Total airflow: 25,000 m³/h
Motor and Fan (Exhaust Air Units)
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: single-intake turbo fan
- Total airflow: 25,000 m³/h
Exhaust Air Filtration
- Fiberglass filter: G3 grade (EN779), model PA-50
- Activated carbon filter: pocket-shape type, F5 grade (EN779), model C16-200
Main Configuration
| Base Structure | |
| Floor Arrangement |
|
| Cover Plate | Galvanized steel, bent-formed, 300 mm high |
| Supporting Frame | Galvanized square-tube frame, 40×80 mm (W×L) |
| Floor Filter | Fiberglass filter on the floor frame, G3 grade (EN779), filtering area 26.91 m² |
| Booth Body | |
| Entrance Door | Three-leaf structure, 3,000×2,600 mm (W×H), galvanized steel frame with tempered-glass inserts |
| Personnel Door | One unit, 700×2,000 mm (W×H), tempered-glass insert in square steel frame |
| Wall Panel | 50 mm thick, 1,000 mm wide EPS panels covered with 0.426 mm thick color-steel sheet, tongue-and-groove joint, both sides steel-clad |
| Roof Panel | 0.6 mm thick galvanized sheet, bent-formed |
| Ceiling Light | Ten fixtures on left and right upper positions. 4 PHILIPS LED tubes per fixture, 22 W each, 40 tubes total |
| Side Light | Ten fixtures on each wall. 2 PHILIPS LED tubes per fixture, 22 W each, 20 tubes total |
| Plenum | 450 mm high plenum chamber made of galvanized steel, powder-coated for durability |
| Ceiling Filter | Aluminium-profile supporting grid with high-efficiency F5 filter (EN779), type SP-600G |
| Makeup Air Units | |
| Cabinet Frame | 1.5 mm galvanized steel, bent-formed, with aluminium alloy three-way connectors |
| Makeup Air Control | Belimo NMU230 10 N actuator with air valve for fresh-air adjustment |
| Pneumatic Actuator | Pneumatic valve actuator for opening/closing the air valve during spraying or baking |
| Heating System |
|
| Makeup Air Filter | Pre-filter, G3 grade (EN779) |
| Exhaust Air Units | |
| Cabinet Frame | 1.5 mm thick galvanized steel, bent-formed, with aluminium alloy three-way connectors |
| Exhaust Air Control | Hand-damper for air regulation. Equipped with 4 m straight duct, one 90° elbow and one 30° elbow |
| Control System | |
| Includes | pressure gauge, temperature controller, baking timer, hour counter, spray switch, heat-spray switch, bake switch, left-light switch, right-light switch, start switch, power switch, and emergency stop |
