Automotive Paint Booth (Economic Paint Booth)
Request a Quote
Yubase Series
Industrial spray booths for car refinishing

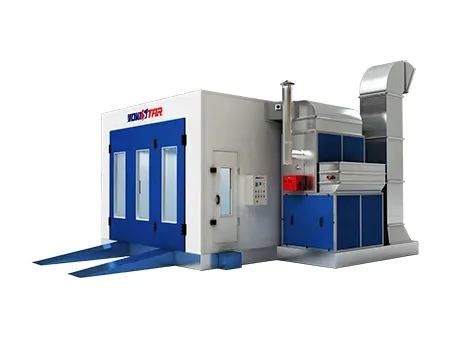

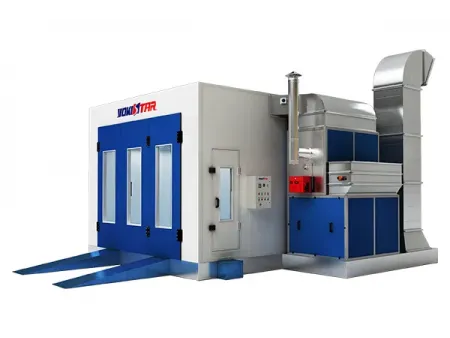

The Yubase series includes several economic automotive paint booths designed for workshops that are beginning operations or focusing on standard refinishing work. Paint booths in this series can be equipped with sidelights when additional brightness is needed inside the cabin during preparation and spraying. The exhaust section supports different motor options depending on the required airflow: 3 kW, 4 kW, 5.5 kW or 7.5 kW.
- Internal dimensions
6,900 × 3,900 × 2,650 mm (L × W × H) - External dimensions
7,000 × 5,350 × 3,400 mm (L × W × H)
Model Comparison
Yubase-O
Motor and Fan (Makeup Air Units)
- Motor type: motor mounted inside the fan housing
- Qty: 2 pcs
- Single motor power: 3 kW
- Total power: 6 kW
- Fan type: double-intake centrifugal fan (YDW-4.5M)
- Total air capacity: 21,000 m³/h
Yubase-B
Motor and Fan (Makeup Air Units)
- Motor type: belt drive
- Qty: 2 pcs
- Single motor power: 3 kW
- Total power: 6 kW
- Fan type: double-intake centrifugal fan (TAE-355-H)
- Total air capacity: 21,000 m³/h
Yubase-T
The Yubase-T paint booths use a direct-drive motor and a single-intake blower, which results in a different exterior layout.
Motor and Fan (Makeup Air Units)
- Motor type: direct drive
- Qty: 1 pc
- Single motor power: 7.5 kW
- Total power: 7.5 kW
- Fan type: single-intake turbo fan
- Total air capacity: 25,000 m³/h
Main Configuration
| Base Structure | |
| Floor Arrangement |
|
| Cover Plate | Made of bent galvanized steel, 300 mm high |
| Supporting Frame | Made of galvanized square steel tubes, size 40 × 80 mm (W × L) |
| Floor Filter | Fiberglass filter placed on the filter frame, G3 grade (EN 779), with a filtering area of 10.35 m² |
| Booth Body | |
| Entrance Door | 3-leaf door, size 3,000 × 2,600 mm (W × H), made of bent steel panels without edge covering, with tempered glass embedded in a square steel frame made of color steel |
| Personnel Door | 1 unit, size 700 × 2,000 mm (W × H), with tempered glass embedded in a square frame made of color steel |
| Wall Panel | 50 mm thick and 1,000 mm wide, with EPS insulation and covered with 0.326 mm thick color-steel sheets. Tongue-and-groove interlock structure; both sides covered with steel |
| Roof Panel | Made of 0.6 mm thick bent galvanized steel plate |
| Ceiling Light | 10 fixtures on left and right upper positions. 4 PHILIPS LED 22 W tubes in each fixture, 40 tubes in total |
| Plenum | 450 mm high; all spare parts made of galvanized bent steel and coated with white powder for long-term use |
| Ceiling Filter | Supporting net made of aluminium profile; sub-high-efficiency filter, F5 grade (EN779), type SP-600G |
| Makeup Air Units | |
| Cabinet Frame | Made of 1.5 mm thick bent galvanized steel with aluminium alloy three-way connectors |
| Makeup Air Control | Belimo NMU230 10 N actuator used to regulate fresh air volume |
| Pneumatic Actuator | Controls the air valve to open or close depending on whether the booth is in spraying or baking mode |
| Heating System |
|
| Makeup Air Filter | Pre-filter, G3 grade (EN779) |
| Exhaust Air Unit |
| Delivered without the motor-and-fan assembly. Includes 4m of straight ducting, one 90° elbow duct and one 30° elbow duct for basic exhaust routing |
| Control System |
| Includes: pressure gauge, temperature controller, baking timer, hour counter, spray switch, heat-spray switch, bake switch, left light switch, right light switch, start switch, power switch, emergency stop |
