VMC-1370 Vertical Machining Center (Box Way) 3 Axis CNC Machining Center

VMC-1370 Vertical Machining Center (Box Way)  3 Axis CNC Machining Center
VMC-1370 Vertical Machining Center (Box Way)  3 Axis CNC Machining Center
VMC-1370 Vertical Machining Center (Box Way)  3 Axis CNC Machining Center
VMC-1370 Vertical Machining Center (Box Way)  3 Axis CNC Machining Center
Request a Quote

The 3 axis CNC machining center adopts a belt drive spindle, with a spindle speed of 6000rpm. This CNC machining center only needs 25KVA power for operating. And its size is 3800×3050×3000mm and its weight is 12000kg.

Parameters
Model VMC-1370
Stroke
X-axis travel (mm) 1300
Y-axis travel (mm) 700
Z-axis travel (mm) 650
Distance from spindle nose to table center (mm) 230-880
Distance from spindle nose to table center (mm) 760
Worktable
Worktable area (mm) 1400×700
Maximum weight on table (kg) 1200
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm) 18-5×100
Spindle
Standard spindle speed (r.p.m) 6000
Spindle horsepower (KW) 20 (15)
Spindle taper BT50φ190 (belt drive)
Feed
X、Y-axis rapid feed (mm/min) 16000
Z-axis rapid feed (mm/min) 13000
Triaxial cutting feed (mm/min) 1-10000
Others
Three-axis motor power (KW) 3.0/3.0/3.0
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 1/2
Power requirement (KVA) 25
Air pressure (bar) 6-7
Machine weight (kg) 12000
Machine dimension (mm) 3800×3050×3000
Components display of vertical machining centers (3 axis box guideways)
  • Turntable type tool magazine, holding 24 tools.

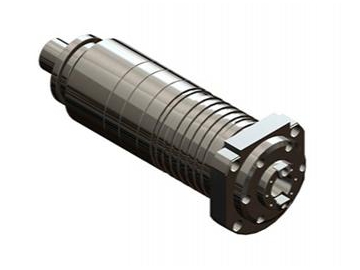

  • Mechanical spindle, direct drive
  • Control system and motor
  • Box guideway
