90mm 40W Brake Motor

Request a Quote

View All: http://zd-drivers.com/1-4-4-brake-ac-gear-motor.html

Motor Specifications

Model	Rating	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
5RK40GU-AM	30min	40	1ph 100	50	0.78	300	315	1250	15.0
				60	1.05		260	1550
5RK40GU-EM	30min	40	1ph 110	60	0.79	260	260	1550	12.0
			1ph 120		0.80
5RK40GU-CM	30min	40	1ph 220	50	0.45	270	315	1250	3.00
			1ph 230
5RK40GU-HM	30min	40	1ph 220	60	0.45	270	260	1550	3.00
			1ph 230
5RK40GU-SM	30min	40	3ph 220	50	0.30	800	315	1250	0.30
				60	0.25	660	250	1600	0.25
5RK40GU-S3M	30min	40	3ph 380	50	0.17	800	315	1250	0.30
				60	0.14	660	250	1600	0.25

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	41	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
5RK40GU-AM 5RK40GU-EM 5RK40GU-CM 5RK40GU-HM 5RK40GU-SM 5RK40GU-S3M	5GU()RC 5GU()RT	Allowance Torque	50Hz	1.58	1.89	2.63	3.16	3.79	5.26	6.31	6.80	9.50	11.4	14.2	17.0	18.9	20.0	20.0	20.0
	5GU()RC 5GU()RT	Allowance Torque	60Hz	1.27	1.53	2.12	2.55	3.05	4.24	5.09	5.50	7.64	9.16	11.5	13.7	15.3	18.3	20.0	20.0

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	2.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	2.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
5RK40GN-AM 5RK40GN-EM 5RK40GN-CM 5RK40GN-HM 5RK40GN-SM 5RK40GN-S3M	5GN()K	50Hz	0.77	0.92	1.30	1.50	1.90	2.30	2.38	3.20	3.80	4.60	4.88	5.70	6.90	8.30	8.57	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0
	5GN()K	60Hz	0.63	0.76	1.10	1.30	1.60	1.90	2.00	2.60	3.20	3.80	4.07	4.70	5.70	6.80	7.19	8.60	10.0	10.0	10.0	10.0	10.0	10.0	10.0	10.0

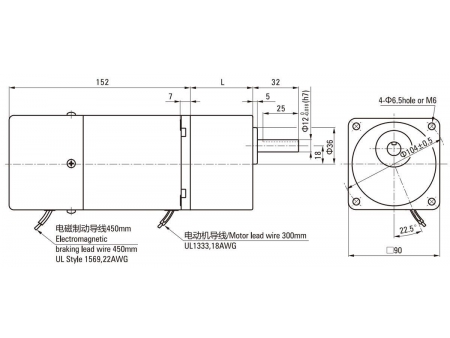

L1=43.5mm
