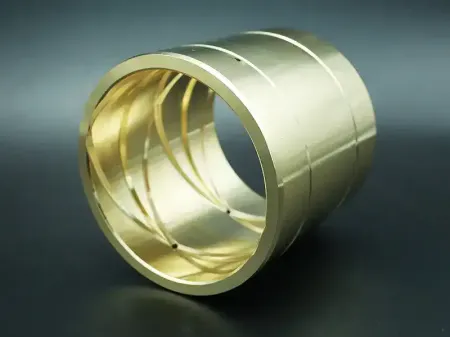

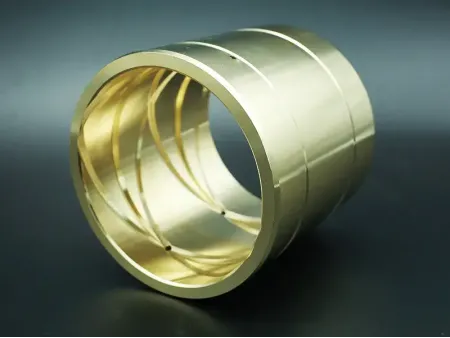

Bronze Bearings
-
Maximum Outer Diameter up to 4000 mm
-
Maximum Weight of a Single Piece 5 tons

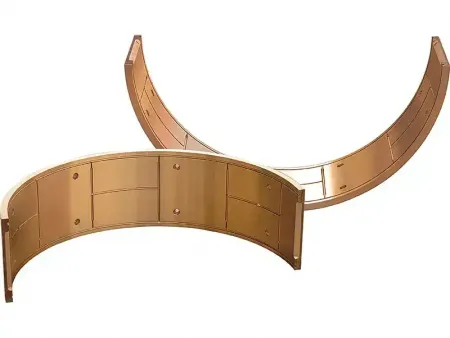

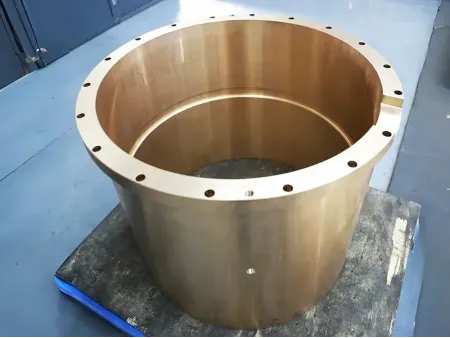

Bronze bearings are commonly used in rotating machinery that require strength, reliability, and resistance to wear. They’re made from copper-based alloys and shaped as hollow cylinders, sometimes with one or two flanges, to support shafts and minimize friction in both light and heavy-duty equipment. These bearings are generally divided into two categories: plain bearings and thrust bearings. Each type can be customized to match specific operating requirements, with the choice of bronze alloy and lubrication groove design helping ensure stable and efficient performance under different working conditions. These bearings are made from high-strength and high-hardness alloys, which is ideal to withstand heavy loads, high temperatures, impacts, and reciprocating motions. They are also stable in wet environments or situations where regular lubrication isn't feasible.
Compared with standard bronze bushings, their hardness and strength are more than doubled, which helps maintain precision and durability even under demanding use. In addition, bronze bearings have good ductility, providing a balance between toughness and flexibility during operation and installation. Known for their strength, smooth motion, and lasting resistance to wear and corrosion, bronze bearings are a good choice for machinery that needs to run steadily over time.
Bronze bearings are produced according to the specific requirements and operating conditions of the equipment they are installed in. Manufacturing is done with micron-level precision, using bronze alloys such as C90500, C90700, C91700, and C94300, each chosen for its distinct properties and applications.
| Material No. | Category | Core Properties | Typical Applications |
| | Tin Zinc Leaded Bronze | • Balanced mechanical properties • Excellent cold and hot formability • Good weldability | Used for small and medium-sized gears, couplings, pulleys, pump impellers, and valve components |
| | Phosphor Bronze | • Good machinability and wear resistance • High surface precision after processing | Used for bushings, washers, and sliding blocks in light-load bearing seats and small mechanical connectors |
| | High-Strength Iron Bronze | • Stable mechanical properties at high temperatures • Good casting fluidity and high molding success rate | Used for guide sliders, high-temperature bushings, and components in thermal or heavy-duty machinery |
| | Aluminum Tin Bronze | • Good machinability (easy to cut and shape) • Low surface roughness | Used for precision nuts, screws, gear rings, instrumentation parts, and small bearing sleeves |
Bronze bearings are widely used across multiple industrial fields, including:
- Iron and steel production
- Automotive systems
- Mining equipment
- Heavy machinery
- Power generation
- R&D Capability
We handle every production stage independently, from the development and casting of bronze wear parts to machining and quality inspection. This allows us to have full control over product quality and ensures that each process is backed by our proprietary know-how and patented technologies.
- Industry Experience
Backed by more than 40 years of experience, we specialize in bronze wear parts for wind power, mining, hydropower, marine, and oil extraction equipment. Our product catalog includes bronze and steel bearings, bushings, and other wear components. We have long-term partnerships with several Fortune 500 companies within these industries.
- Production Strength
Our workshop is equipped with 20 advanced five-axis machining centers from MAZAK and MAKINO, along with 35 imported turning and milling machines. The 5,000 m² temperature-controlled facility is operated by experienced CNC technicians who make sure every part is machined with accuracy and consistency.
- Quality Control and Certifications
We manage every step of production in-house, following ISO9001 and CCS quality standards to ensure consistent results. Our CNAS-accredited laboratory (CNAS L5937) and skilled inspection team handle all testing and verification, including material composition, hardness, tensile strength, and microstructure, along with non-destructive tests such as UT, PT, and VT. All procedures comply with GB, ASTM, ISO, JIS, and YS standards.
From bronze bushings and bearings to customized wear components, we’re here to help you find the right solution for your equipment.
