Automatic Horizontal Wire Coil Packaging Line

Request a Quote

View All: http://coilpackaging-en.com/1-4-automatic-horizontal-wire-coil-packaging-line.html

SA-WS-150

Horizontal coil wrapping machine with C-hook lifter for packaging, weighing and labeling of wire rod coils and slit coils

Packaging speed 1min/pc
Inner diameter of coil 400mm (±20mm)
Outer diameter of coil 700mm (±30mm)
Coil length 210mm

The horizontal wire coil packaging line is designed for high-output operations, ideal for manufacturers handling large volumes of wire rod coils and slit coils. It features manual feeding, and is equipped for automated packaging, weighing, labeling, and automated storage. Built with two integrated coil wrapping machines, this coil wrapping line delivers double the packaging speed, making it a reliable choice for facilities with demanding production throughput. Labeling data can be uploaded automatically to your ERP or MES system, enabling full data traceability and streamlined production management.

Wrapped coils are effectively protected against moisture, dust, rust, and surface scratches, ensuring excellent product condition during storage and transport.

Applications

Suitable for packaging ring-shaped metal wire products such as stainless steel, low-carbon steel, high-carbon steel, galvanized wire, copper strip, copper wire, and aluminum strip.

Transforming Coils: From Exposure to Protection

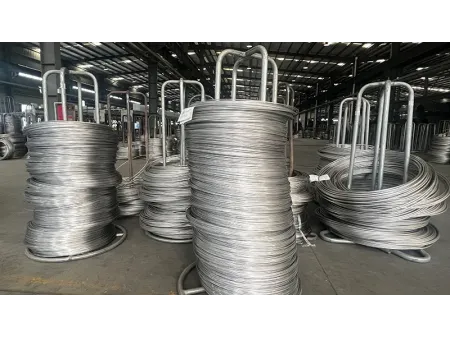

Before packaging

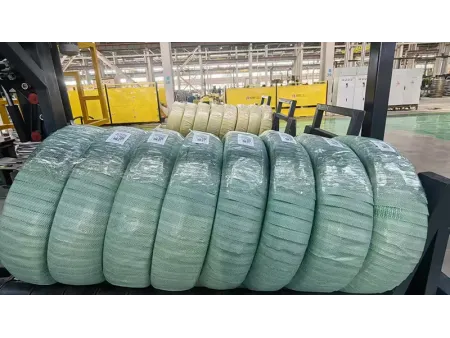

After packaging

Specifications

Dimensions (L×W×H): 13×9×3.2m
Inner diameter of coil: 400mm ±20mm
(machine can be designed based on the required size of customer's products)
Outer diameter of coil: 700mm ±30mm
(machine can be designed based on the required size of customer's products)
Coil length: 210mm
Weight: Max. 200kg
Packaging speed: 1min/pc
Voltage: AC380V 50Hz
Total power: ≤30kW
Air pressure: ≥0.6MPa

Functions

Manual feeding (optional upgrades available: AGV, forklift, or overhead crane)

Vertical lifting and transfer of coil material

Automated coil wrapping using your choice of woven tape, PE film, or kraft paper

Automatic weighing and labeling with fully customizable label content

Specification-based storage of finished products

Real-time data sharing via automatic upload of label information to your ERP or MES system

Do you provide training after purchasing the coil wrapping line?

Yes, we provide comprehensive training, covering equipment operation, daily maintenance essentials, and basic troubleshooting. This ensures your team can confidently operate the machine and integrate it into your production line with minimal downtime.

Can the coil wrapping machine package products other than metal wire coils?

In addition to metal wire products, our coil wrapping line can also be adapted to package other ring-shaped items within suitable size ranges such as hoses, tires, bearings, and steel strips.

How can the wire coil packaging line be adjusted for different coil sizes?

Our wire coil wrapping machine is equipped with a PLC control system. By simply entering the width, inner diameter, and outer diameter into the system, it automatically adjusts the strapping length and the number of coil rotations to accommodate different coil sizes.
