Metallographic Precision Cutting Machine

  • Cut-off wheel: Φ230×1.2×Φ32mm
  • Max. cutting capacity: Φ 60mm
  • Motor: variable frequency, 1.3 kW
  • Cutting method: Automatic, Spindle feeding along Y axis
Request a quote
Features
  • JMQ-60Z automatic precision cutter is controlled by single chip and it cuts along Y axis, featuring high positioning precision, wide speed regulation range and strong cutting ability.
  • Touch screen control, safety & limit switch and transparent safety shield always provide the safety guarantee for the cutting.
  • The recirculating coolant system provides coolant to the sample during the cut, enabling the surface of the spiecemen bright, smooth and free of heat damage.
Applications

JMQ-60Z automatic precision cutter is designed for precision cutting of a variety of materials, like metals, ceramic materials, crystals, cemented carbides, rocks, minerals, concrete, organic materials, biological materials (teeth, bones) and so on.

Technical Data
  • Feed speed: 0.7-36mm/min (adjusted in steps of 0.1mm/min, the max. speed is under zero load)
  • Y axix travel: 200mm
  • Cutting table: 320×225mm,12mm T-slot
  • Spindle span: 125mm
  • Spindle speed: 500-3000r/min
  • Clamping tool: quick clamp, jaw height: 45mm
  • Dimensions: 850×770×460mm
  • Net weight: 140kg
  • Water tank capacity: 36L
  • Pump flow: 12L/min
  • Water tank dimensions: 300×500×450mm
  • Water tank weight: 20kg
Optional Accessories

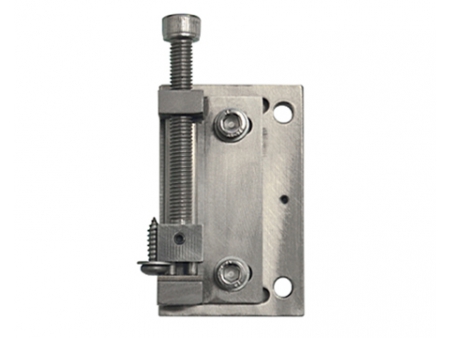

  • Vertical Clamping Vise

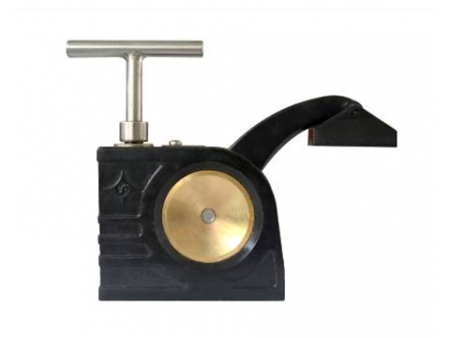

  • Fastener Vise

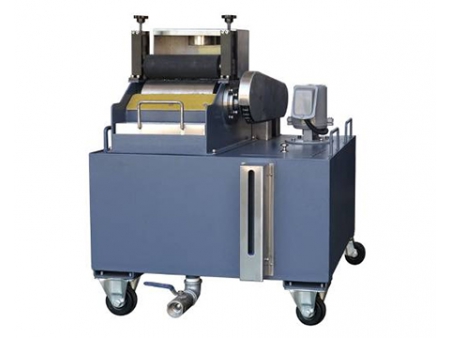

  • Magnetic Circulation Cooling Water Tank
