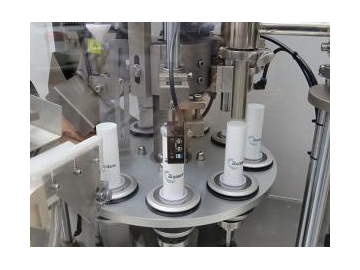

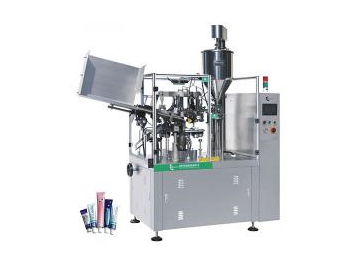

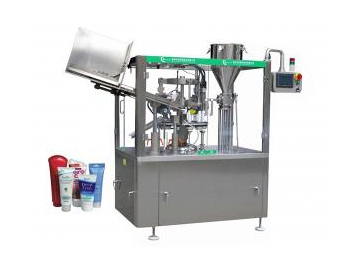

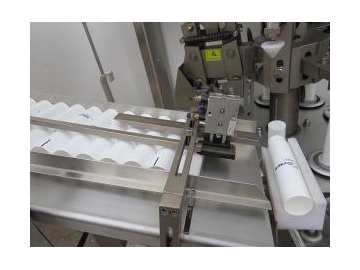

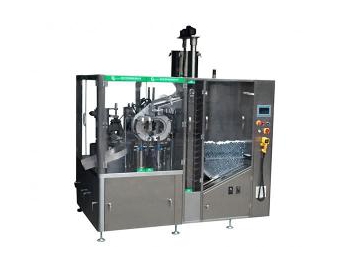

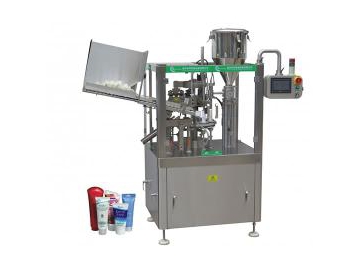

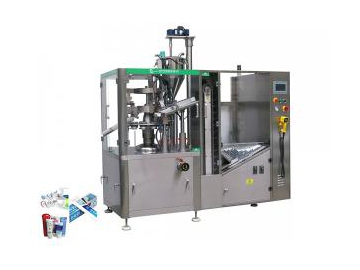

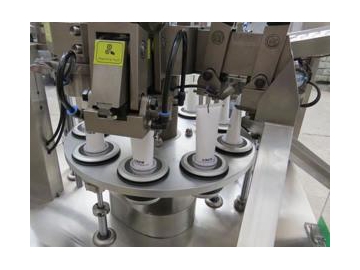

Automatic Tube Filler and Sealer, ZHY-60YP

Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Automatic Tube Filler and Sealer, ZHY-60YP
Request a Quote

Auto Tube Filling and Sealing Machine, Auto Liquid Filling Equipment, Auto Liquid Packaging Line, Tube Filling & Sealing Equipment

Main Features
1. Zhonghuan auto tube filling and sealing machinery features compact structure, auto feeding way, and fully-closed driving part
2. The whole process of tube feeding, cleaning, labeling, filling, sealing, code printing, trimming, and discharging are done fully automatically for our auto filler and sealer
3. Pneumatic driving way with high accuracy and reliability is adopted for tube feeding and cleaning

Technical Parameters of Zhonghuan Tube Filling & Sealing Equipment
Filling volume: 1-250 ml/unit (adjustable)
Filling deviation: ≤±1﹪
Capacity: 2400-3000 unit/hour (adjustable)
Tube diameter: Φ10-Φ50 mm
Tube length: 50-200mm
Hopper volume: 40L
Power supply: 380V /220V (optional)
Air pressure: 0.4-0.6 MPa
Power: 7kw

Applications
Zhonghuan ZHY-60YP series auto filling and sealing machine is designed to fill ointments, creams, gels, or other viscous fluids into tubes, and then seal the tube ends and print codes on them. It is widely applied in cosmetics, household chemicals, pharmaceutical, food, and other industries. Any products that adopt tubes as the packaging containers can use it.

Cautions
1. Acceptable tube types of the filler & sealer: full-plastic, composite, and aluminum-plastic composite
2. Allowable fluid types: ointments, creams, gels, other viscous fluids
