Batch Charger (Glass Furnace Feeder)

Request a Quote

Website: http://glassmachine-en.com/1-1-batch-charger.html

Flat Glass Production Line, Hot End

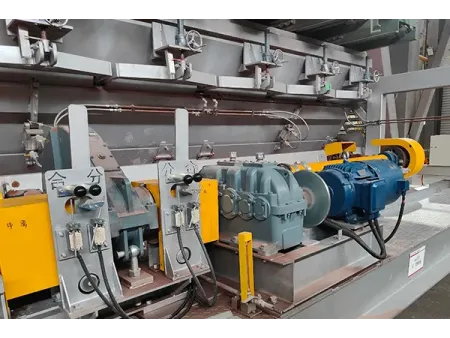

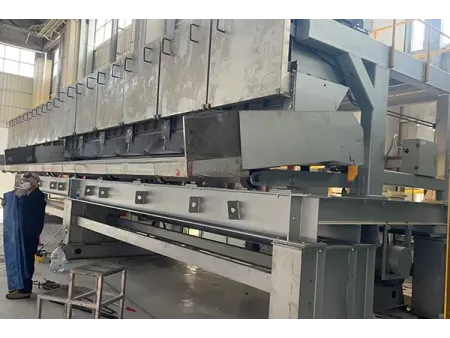

Batch charging system installed in front of the glass melting furnace for continuous feeding of raw material

Batch chargers are placed at the hot end of a flat glass production line, right before the melting furnace. Its job is to continuously feed raw materials onto the glass melt. The charging paddles move back and forth at a slight angle (about 10°), pushing the mix forward into the furnace. As the charging paddles push the mix forward, fresh material from the hopper drops down by gravity and spreads into a thin layer, with the gate controlling how much passes through. Keeping this flow steady is important because it allows the raw materials to melt at a consistent rate, reducing temperature fluctuations inside the furnace and helping the glass maintain stable quality throughout production.

Specifications

Charging chute width	6-14m (depending on melting zone width)
Max. charging capacity	100-1000t/d
Charging chute spacing	40mm
Reciprocating stroke of charging chute	210mm/240mm
Reciprocating frequency of charging chute	0.47-4.7 r/min
Outlet opening adjustment range	0-350mm
Batch thickness	25-325mm
Tilt angle of charging chute	10°±2°
Height of charging chute	Depending on actual batch charging height
