Glass Breakout Machine

Request a Quote

Website: http://glassmachine-en.com/2-3-glass-breakout-machine.html

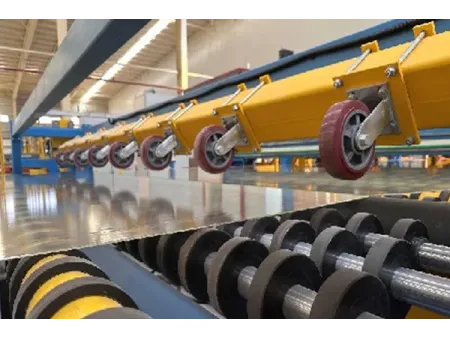

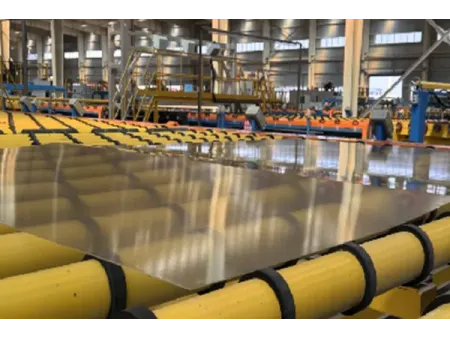

Automatic glass breakout station used in glass cutting line for breakout and separation of flat glass sheets

The automatic glass breakout machine is used in glass cutting lines for the breakout and separation of flat glass sheets. It is designed to handle glass emerging from the annealing lehr, cutting and breaking it into finished glass panels according to specified dimensions.

Glass sheet length accuracy: ±0.3mm
Glass sheet width accuracy: ±0.25mm
Glass sheet diagonal accuracy: ±0.45mm
Break-out accuracy: ±3mm
Max. cutting speed: 3m/s
Max. knife return speed: 5m/s

Equipment Types

Cross glass snapping machine

Daily capacity	Customized according to customer requirements
Glass thickness	0.12-25mm
Maximum raw glass width	W (customized according to customer requirements)
Lift height	35mm (fine adjustment available)
Transverse speed	500mm/s (with automatic tracking available)

Longitudinal glass snapping machine

Daily capacity	Customized according to customer requirements
Glass thickness	0.12-25mm
Max. raw glass width	W (customized according to customer requirements)
Breakout cycle	0.7s-2s
Lift height	55mm
Speed	Max:>1000 mm/s High-speed stages:max. 3600/4800/5400 mm/s

Glass edge trimming machine

Daily capacity	Customized according to customer requirements
Glass thickness	0.12-25mm
Max. raw glass width	W (customized according to customer requirements)
Effective breakout stroke	Customized according to glass width
Breakout head travel speed	0-83 mm/s (with automatic tracking available)
