PH(T) Series Horizontal Temperature Test Chamber

Request a Quote

Website: http://testchamber-en.com/1-1-horizontal-temperature-test-chamber.html

Environmental simulation chamber for high-temperature testing of electronics, coatings and industrial components

This horizontal chamber is designed for high-temperature simulation of electronics, coatings, and industrial components. The side-to-side airflow ensures even heat distribution without blocked ducts, providing consistent results across all samples.

A 7-inch high-resolution touchscreen makes operation simple, while the proprietary PID control algorithm delivers precise temperature regulation with improved energy efficiency. This type of environmental simulation chamber supports both fixed-point and programmable modes and can be customized with a double-layer configuration to maximize space. It is suitable for most applications requiring temperatures up to 300 °C, such as testing electronic components and coating materials.

Standard Configuration

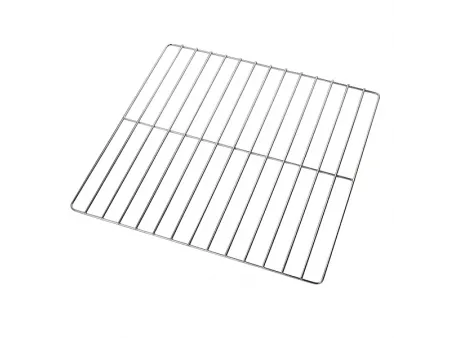

2 sets of specimen racks

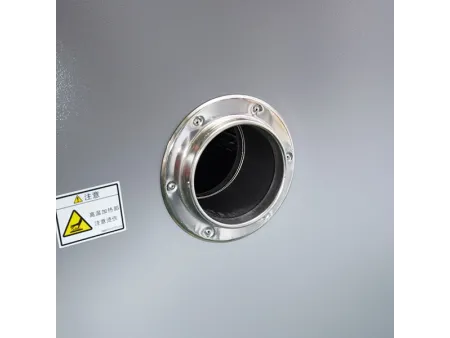

1 Cable port (Ø50 mm): with a white hard rubber plug and cover for PH models. Supplied with only a cover for PHH models
1 vent port
1 terminal block for controlling specimen power supply

Technical Parameters

Model		PHT				PHHT
		101	201	301	401	101	201	301	401
Chamber volume (L)		91	216	512	1000	91	216	512	1000
Temperature range		(Ambient temperature 20)℃～ 200℃				(Ambient temperature 20)℃～ 300℃
Temperature fluctuation	≤100℃	0.4℃		0.4℃		0.4℃		0.4℃
	≤200℃			0.8℃				0.8℃
	≤300℃	--				0.8℃		1.2℃
Temperature deviation	≤100℃	±1.5℃		±2.0℃		±1.5℃		±1.5℃	±2.0℃
	≤200℃	±2.0℃				±2.0℃
	≤300℃	--				±3.0℃		±4.0℃
Temperature rise rate		≤40min		≤60min		≤60min		≤70min
Internal dimensions (mm)	W	450	600	800	1000	450	600	800	1000
	H	450	600	800	1000	450	600	800	1000
	D	450	600	800	1000	450	600	800	1000
External dimensions (without protrusion) (mm)	W	1040	1190	1500	1730	1040	1190	1500	1730
	H	820	970	1210	1480	820	970	1210	1480
	D	635	785	1065	1275	635	785	1065	1275
Power supply		220V (single phase protective grounding wire)		380V (three phase four wire protective grounding wire)		220V (single phase protective grounding wire)		380V (three phase four wire protective grounding wire)
Rated power (kW)		2	2.7	5	6.5	2.7	3.8	6.5	9.5

Performance values are based on an ambient temperature of 25 °C, measured with the chamber empty and no air exchange during operation.
