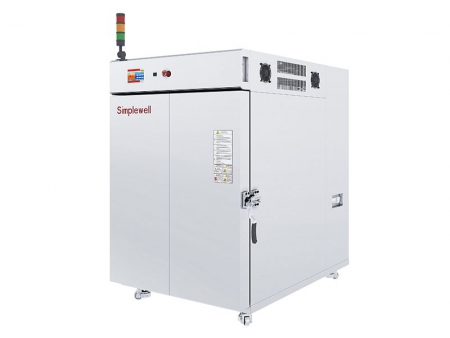

Temperature Chamber

Request a Quote

View All: http://testing-machinery.com/2-temperaturet-chamber.html

This line of temperature chambers features excellent heating performance at RT 10℃~150℃ within about 20 min, RT 10℃~200℃within about 25 min, RT 10℃~260℃ within about 30 min, and RT 10℃~300℃ within about 35 min.

The exterior of these temperature chambers is produced using SECC steel, while their interiors are made from SUS stainless steel. They are equipped with high-temperature long shaft motors and an overload system with an automatic shut off power function to protect them from damage caused by overheating.

If our standard temperature chambers do not satisfy your needs, we can manufacture custom-made temperature chambers of various dimensions and functions according to your requirements.

Parameters

Model

CZ-452C

CZ-602C

CZ-802C

CZ-902C

CZ-1002C

CZ-1202HC

Workspace Dimensions
H x W x D (cm)

45x40x40

50x60x50

60x80x50

60x90x50

100x100x100

90x120x50

Exterior Dimensions
H x W x D (cm)

61x86x80

66x106x90

76x126x90

76x136x90

116x146x140

106x166x90

Temperature Changing Speed

RT 10℃~150℃ About 20 Min
RT 10℃~200℃ About 25 Min
RT 10℃~260℃ About 30 Min
RT 10℃~300℃ About 35 Min

Temperature Control Tolerance

±1.0

Temperature Homogeneity

2.50%

Power

Optional

Model

CZ-1202LC

CZ-1402C

CZ-1502C

CZ-1602C

CZ1802-C

CZ2002-C

Workspace Dimensions
H x W x D (cm)

120x90x50

140x120x60

150x150x120

160x140x80

180x140x100

200x160x120

Exterior Dimensions
H x W x D (cm)

184x126x68

204x156x78

214x186x138

224x176x98

224x176x118

264x296x138
