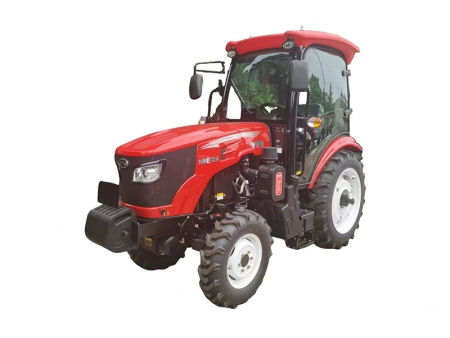

Narrow Tractor / Orchard Tractor, 50-75HP
Request a Quote
YTO-ESG5045G/ ESG5545G/ ESG6045G/ ESG6545G/ ESG7045G/ ESG7545G
Features
- These tractors feature a compact design, making it ideally suited for orchards, forestry plantations, and other low-clearance, narrow spaces, while remaining fully capable for general farmland operations.
- 16F/8R gears provide a wide speed range and high operating efficiency.
- A side-mounted gear lever allows for comfortable operation from the seated position.
- A large front axle steering angle combined with a small turning radius enables exceptional maneuverability in confined areas.
- Hydrostatic steering system provides effortless, responsive, and precise control.

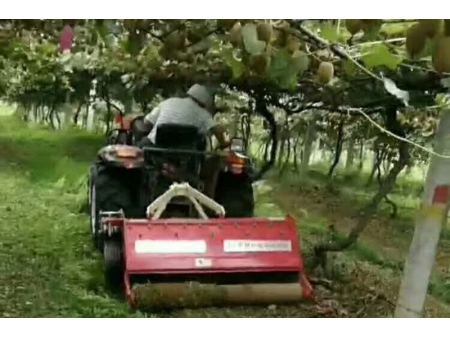

- Rotary tillage

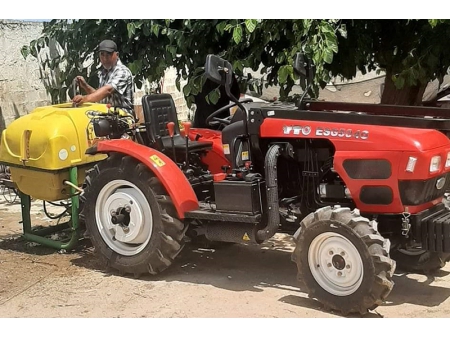

- Pesticide spraying
- Height: 1260mm
- Width: 1380mm
Specifications
| Model | ||||||
| Engine type | 4 cylinder, naturally aspirated diesel engine | 4 cylinder, turbocharged diesel engine | ||||
| Rated engine HP (kW) | 36.8(50) | 40.5(55) | 44.1(60) | 47.7(65) | 51.5(70) | 55.2(75) |
| Engine speed (rpm) | 2200 | 2300 | ||||
| Clutch | Double action | |||||
| Gears | 16F/8R | |||||
| Speed range (km/h) | 0.44-33.48 | |||||
| Brake | Dry, shoe | |||||
| Rear PTO (rpm) | 540/1000 | |||||
| Lift capacity (pivot point) (KN) | ≥12.7 | |||||
| Hydraulic outputs (set) | 1 or 2 | |||||
| Dimensions (L*W*H) (mm) | 3080*1380*1260 (steering wheel) | |||||
| Wheelbase (mm) | 1740 | |||||
| Ground clearance (mm) | 265 | |||||
| Track width (F/R) (mm) | 1000 /1000-1200 | |||||
| Min. turning radius (m) | 4.8±0.2 | |||||
| Tyre (F/R) | 6.00-14 /13.6-16 | |||||
| Total mass (ROPS) (kg) | 1710 | 1740 | ||||
