Vertical Balancing Machine
Request a Quote
YLD-100
Hard-bearing balancing machine for workpiece with diameter of up to 500mm and weight of 10-100kg

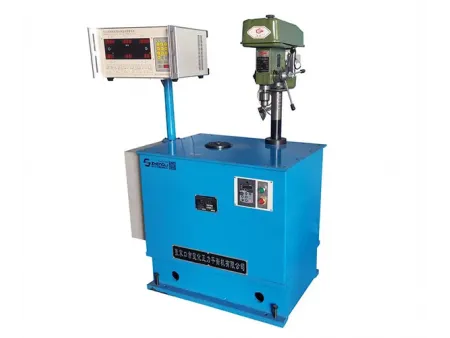

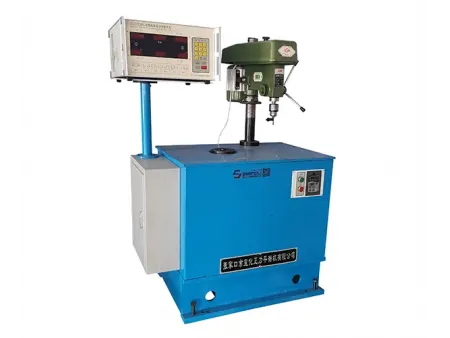

Designed to balance medium to heavy workpieces of up to 100kg with precision and stability. Available in three setups: standard for general use, A type with a bench drill for material removal, and B type with a bench drill and dust collector for cleaner operation. These vertical balancing machines provide consistent accuracy and reliable performance, suitable for automotive and rotor production lines.
Applications
Suitable for dynamic balancing of automotive and motorcycle parts, especially disc-shaped components that require stable and precise adjustment.
- Clutch pressure plates balancing
- Flywheels balancing
- Gears balancing
- Pulley balancing
Specifications
| Workpiece weight (with clamping tools) | 10-100kg |
| Max. workpiece diameter | 500mm |
| Max. workpiece thickness | 150mm |
| Max. initial unbalance of workpiece | < 2500g.cm |
| Couple unbalance interference ratio | ≤1/2000 |
| Balancing speed | 600r/min |
| Min. achievable residual unbalance (eMar) | ≤1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
Features
- Equipped with an advanced digital measuring system using large-scale integrated circuits
- High measurement sensitivity with quick results
- Within five seconds, both unbalance value and phase are displayed directly in grams and degrees
- Allows switching between light and heavy rotors even when stopped.
- Automatic memory function for easier operation
