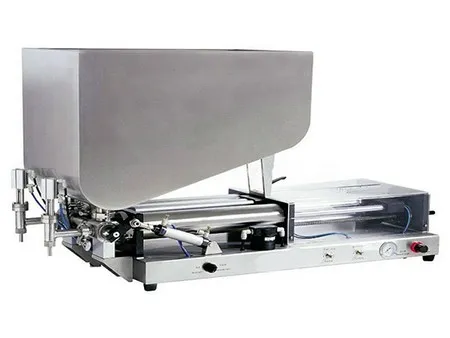

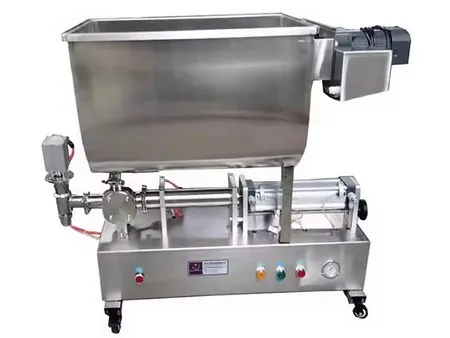

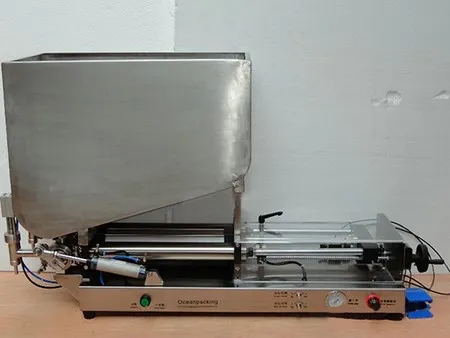

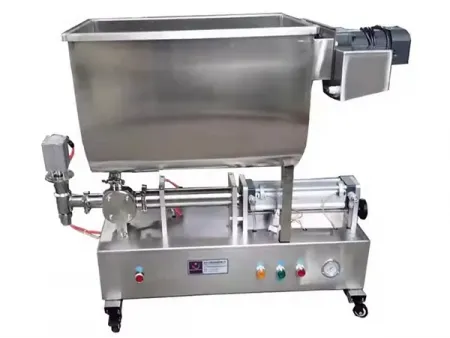

Pneumatic Paste Filling Machine with U-Shaped Hopper
The pneumatic semi-automatic paste filling machine is designed for filling pastes, jams, shampoos, lotions, perfumes, etc., with soft particulate viscous liquids. It features fully pneumatic control, easy operation, disassembly, and cleaning. Single-head or double-head filling options are available.
| Model | Filling Range | Air Pressure | Speed | Accuracy |
| | 5-60ml | 4-6kg/cm² | 30-60bpm | 99% |
| 10-120ml | 4-6kg/cm² | 30-60bpm | 99% | |
| | 25-250ml | 4-6kg/cm² | 30-60bpm | 99% |
| | 50-500ml | 5-8kg/m² | 30-60bpm | 99% |
| | 100-1000ml | 5-8kg/m² | 30-60bpm | 99% |
| | 250-2500ml | 5-8kg/m² | 20-50bpm | 99% |
| | 500-5000ml | 5-8kg/m² | 10-30bpm | 99% |
- Capable of filling various containers like bottles, cans, and cups.
- Contact parts made of 316L stainless steel; other metallic parts made of 304 stainless steel.
- Equipped with AirTAC pneumatic cylinders, achieving a filling accuracy of 99%.
- Double filling heads option for higher filling speed.
- Suitable for filling pastes, creams, jams, sauces, gels, shampoos, lotions, oils, juices, perfumes, inks, water, etc., into all types of containers like bottles, cans, and jars.
- Widely used in cosmetics, beverages, chemicals, medical, and food industries, significantly enhancing productivity and product quality.

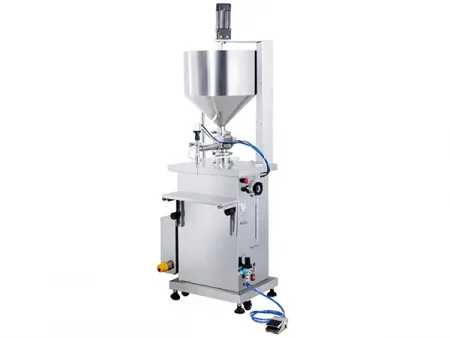

Vertical Paste Piston Filler

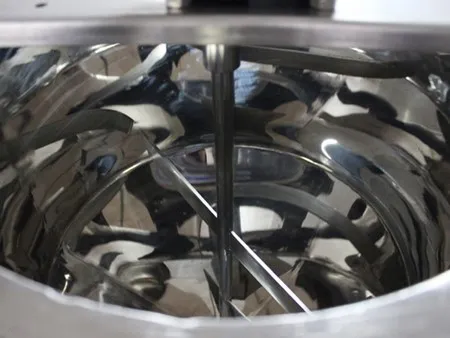

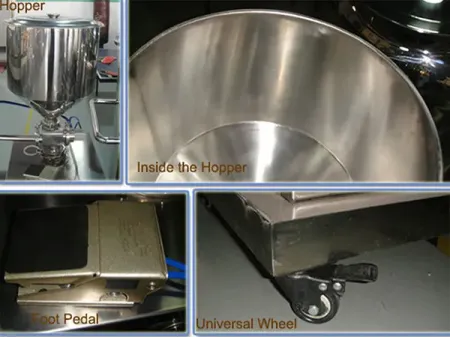

Vertical paste piston fillers are primarily used for filling high-viscosity products in the food/beverage industry, such as water, shampoo, toothpaste, honey, butter, etc. It is also applicable for products in other industries like personal care. This machine features pneumatic and foot-operated control, equipped with a volumetric filling pump for precise dosing. It is easy to operate, disassemble, and clean, with optional heating and mixing functions available.
| Model | |
| Filling Range | 50-3000ml |
| Speed | 20-40 bottles per minute |
| Air Consumption | >0.2m³/min |
| Air Pressure | >0.4MPa |
After each filling session, the remaining material should be extracted using the automatic function. Depending on the product properties, appropriate cleaning solutions or water should be used to let the semi-automatic paste filling machine auto-mix and clean, followed by a thorough rinse with clean water.
