Request a Quote

(0.5-200g)

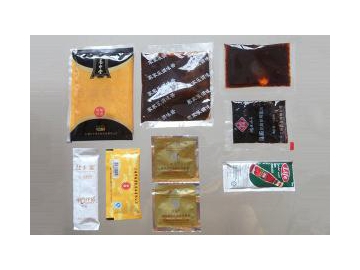

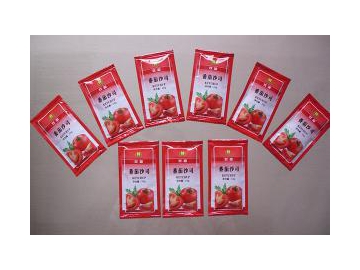

Packing Sample Pictures

Technical Parameters
Model DXDL-240 DXDL-300
Sealing type 3/4 side sealing 3/4 side sealing or back sealing
Method of measurement Plunger pump or needle valve (one set equipped)
Range of measurement 0-100ml 0-300ml
Packaging speed 40-60 bags/min
Bag size W: 30-120mm L: 30-170mm W: 30-150mm L: 30-170mm
Power 1400W 1600W
Voltage 380V, 220V or customized 380V, 220V or customized
Machine weight 210 kg 260 kg
Dimensions 630×750×1600mm 1000×740×1700mm

Features
1. With the use of a stepping motor, the liquid and paste bag forming filling sealing machine is capable to pack materials at a customized length or flexible length. There is no need to adjust the parameter, saving time and film. Plus, the paste packing machinery will automatically give an alarm while film shortage.

2. The temperature is controlled by an intelligent solid-state double-loop PID controller for suiting various types of packaging materials. A protection device is also equipped to ensure packaging material and product will not be burned.

3. The drive system possesses compact structure, reliable performance and convenient maintenance.

4. Many other attractive features are designed in this liquid packing machine. For example, the part directly contacting with materials is made from SUS304 stainless steel, in order to guarantee high hygiene. A micro-computer LCD is installed for intelligent control. The malfunction alarm system and electric control cabinet both contribute to 24-hour continuous running of the automatic packaging machine. The liquid and paste bag forming filling sealing machine provides variable-frequency speed adjustment and passes CE certificate. It automatically completes bag making, measuring, filling, sealing, cutting and counting by itself.

5. Optional configurations include ribbon printer, filling device, gas-exhaust device and beating device.

6. Applicable materials are PET/PE, Paper/PE, PET/AL/PE and OPP/PE.
