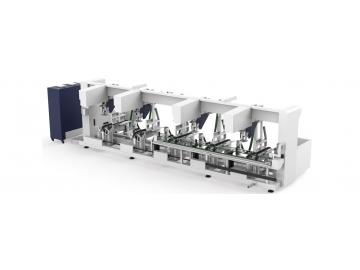

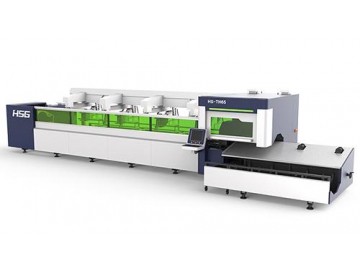

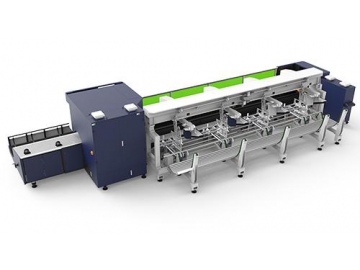

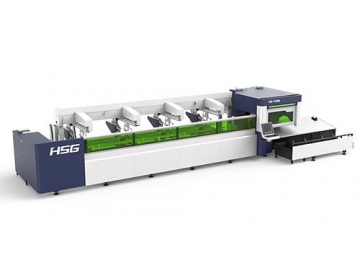

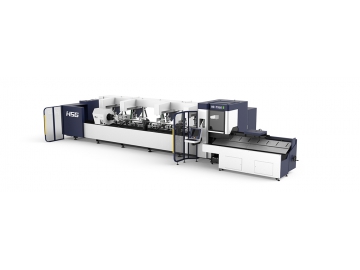

TH65 Fiber Laser Tube Cutting Machine
Compared to other pipe cutters, the TH65 fiber laser tube cutting machine has a faster running speed and acceleration, with a maximum speed of 100m/minute and a maximum acceleration up to 1.0G, which is 5 times faster than other pipe cutters.
Applicable materials: Stainless steel, carbon steel of 0.5-10mm, aluminum, brass, copper, galvanized plate, cold-rolled sheets and more.

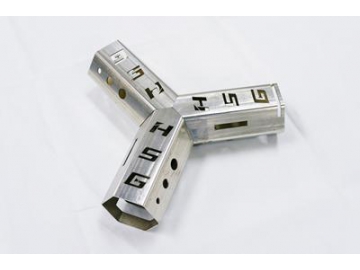

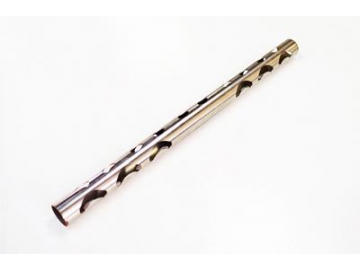

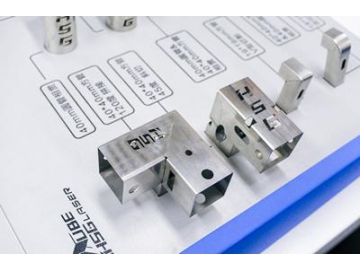

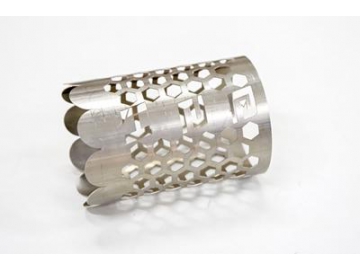

Applicable materials: Square, circular, rectangular, oval, and special shapes such as a D shape and hexagon tube.
Application industry: This tube laser cutter is used for processing of metal sheets, kitchenware, furniture, lighting, gym equipment, automobile manufacturing and more.
| Processing Area(circular tube) | Φ20mm-Φ210mm |
| Processing Area(square tube) | 20×20mm-150×150mm |
| Machinable Pipe Length | 6500mm |
| Laser power | 1000W-4000W |
| Laser Wavelength | 1070-1080mm |
| Max. moving speed | 100m/min |
| Max. acc. speed | 1.0G |
| Positioning Accuracy | 0.03mm/m |
| Reposition Accuracy | ±0.03mm |
| Power Supply | 380V/50Hz |
| Machine loading weight | 3000Kg |
| Machine dimensions | 12000mm×3500mm×2800mm |
* We offer lasers in various power levels. The materials and thicknesses to be cut directly depend on the laser power.
- Stainless steel
- Carbon steel
- Brass
- Copper
- Aluminum
- Galvanized steel
- Cold rolled steel
- Titanium
- Electrolytic steel
- Silicon steel

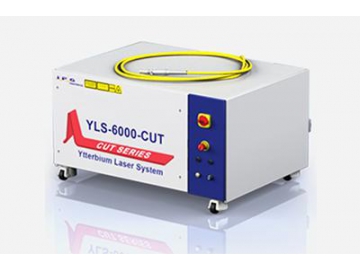

- Laser systemWe use a YLS-CUT series high power fiber laser from IPG.
-

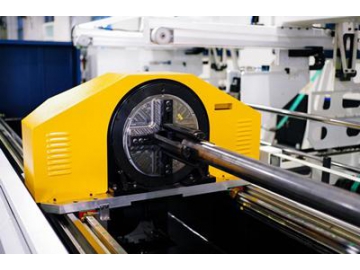

- Pneumatic chuckThe fully automatic pneumatic chuck not only centers and clamps work pieces quickly, but also guarantees the stable holding force through pressure adjustment. Because of this, the clamping process is done with no damage to the pipe. There is no deformation to the pipes, even those that have thin walls.
-

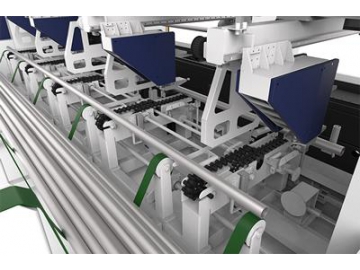

- Automatic material loading and unloading deviceThe automatic material loading and unloading device is controlled using a numerical control system to feeding the pipes. The loading device will clamp a single pipe from the bundle, and send it forward to be inspected. This decreases the cost of manually delivery materials, as it can also load pipe bundles and straightly connect with the pipe cutting process.
-

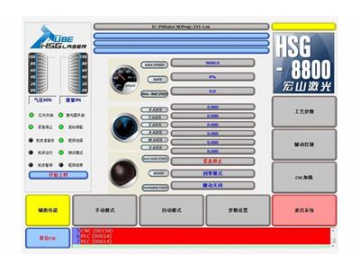

- Operation systemThe HSG8800 operation software is a professional operation software researched and developed independently by our company for fiber laser cutters in order to facilitate easier operation.
-

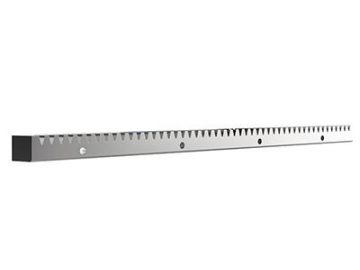

- Rack and gear reducersIn working with YCC, we are able to provide a more durable rack based on customer requirements through the customization of tungsten steel.
-
