Grooved Piping System Mechanical Tee
Product Introduction

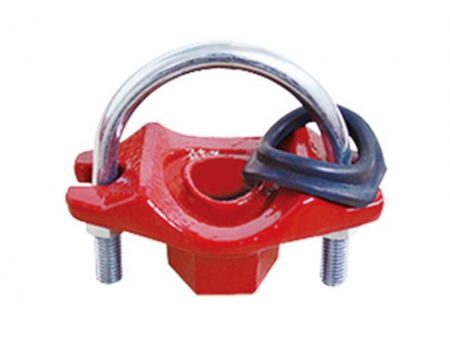

Mechanical tees are pipe fittings that are used in place of full flow cast fittings. The grooved mechanical tee is cast from ductile iron in two equal halves: one being the outlet, the other being the strap. An over-sized hole is drilled or cut into the pipe at the location where the branch or device is needed. The mechanical tee is assembled around the pipe, positioning the collar inside the hole, then enclosing a resilient rubber gasket suitable for that particular piping system. The bolts are then fastened, making the branch more secure. Mechanical tees are intended to connect piping directly into the system. Fitting outlets are supplied with female pipe threads (FPT) or grooved pipes. These are labor saving pipe fittings that are designed to provide excellent flexibility and cost savings to contractors, both in the labor and materials.
Features
Ductile iron construction
Lead free orange paint
Conforms to ASTM A536 standards
UL listed, FM approved
| Nominal Size mm/in | Pipe O.D mm/in | Dimensions | Bolt/ | Hole Dimension (mm) | Working pressure (psi) | ||
| A | L | H | No.-size (mm) | ||||
| mm | mm | mm | |||||
| 50× 25 | 60.3× 33.7 | 120 | 64 | 70 | 3/8×2 (M10×50) | φ38 | 300 |
| 2× 1 | 2.375× 1.327 | ||||||
| 50× 32 | 60.3× 42.4 | 120 | 72 | 70 | φ46 | ||
| 2x11/4 | 2.375× 1.669 | ||||||
| 50× 40 | 60.3× 48.3 | 120 | 72 | 70 | φ46 | ||
| 2x11/2 | 2.375× 1.9 | ||||||
| 65× 25 | 73× 33.7 | 139 | 64 | 73 | 3/8×2-1/8 (M10×55) | φ38 | |
| 21/2x1 | 2.875× 1.327 | ||||||
| 65× 32 | 73× 42.4 | 139 | 72 | 73 | φ46 | ||
| 21/2x11/4 | 2.875× 1.669 | ||||||
| 65× 40 | 73× 48.3 | 139 | 79 | 75 | φ53 | ||
| 21/2x11/2 | 2.875× 1.9 | ||||||
| 65× 25 | 76.1× 33.7 | 139 | 64 | 73 | φ38 | ||
| 21/2x1 | 3× 1.327 | ||||||
| 65× 32 | 76.1× 42.4 | 139 | 72 | 73 | φ46 | ||
| 21/2x11/4 | 3× 1.669 | ||||||
| 65× 40 | 76.1× 48.3 | 139 | 79 | 75 | φ53 | ||
| 21/2x11/2 | 3× 1.9 | ||||||
| 80×25 | 88.9×33.7 | 155 | 64 | 82 | φ38 | ||
| 3× 1 | 3.5× 1.327 | ||||||
| 80× 32 | 88.9× 42.4 | 155 | 72 | 82 | φ46 | ||
| 3x11/4 | 3.5× 1.669 | ||||||
| 80× 40 | 88.9× 48.3 | 155 | 79 | 82 | φ53 | ||
| 3x11/2 | 3.5× 1.9 | ||||||
| 80× 50 | 88.9× 60.3 | 155 | 90 | 82 | φ64 | ||
| 3× 2 | 3.5× 2.375 | ||||||
| 100×50 | 108×60.3 | 172 | 90 | 92.5 | 1/2×2-5/8 (M12×65) | φ64 | |
| 4×2 | 4.25×2.375 | ||||||
| 100×65 | 108×76.1 | 172 | φ80 | ||||
| 4x21/2 | 4.25×3 | ||||||
| 100×25 | 114.3×33.7 | 181 | 64 | 95.5 | φ38 | ||
| 4× 1 | 4.5×1.327 | ||||||
| 100×32 | 114.3×42.4 | 181 | 72 | 95.5 | φ46 | ||
| 4x11/4 | 4.5×1.669 | ||||||
| 100×40 | 114.3×48.3 | 181 | 79 | 95.5 | φ53 | ||
| 4x11/2 | 4.5×1.9 | ||||||
| 100×50 | 114.3×60.3 | 181 | 90 | 95.5 | φ64 | ||
| 4×2 | 4.5×2.375 | ||||||
| 100×65 | 114.3×73 | 181 | φ70 | ||||
| 4x21/2 | 4.5×2.875 | ||||||
| 100×65 | 114.3×76.1 | 181 | φ70 | ||||
| 4x21/2 | 4.5×3 | ||||||
| 100×80 | 114.3×88.9 | 181 | φ89 | ||||
| 4×3 | 4.5×3.5 | ||||||
| 125×40 | 133×48.3 | 205 | 90 | 105.5 | 1/2×3 (M12×75) | φ53 | |
| 5x11/2 | 5.25×1.9 | ||||||
| 125×50 | 133×60.3 | 205 | 100 | 105.5 | φ64 | ||
| 5×2 | 5.25×2.375 | ||||||
| 125×65 | 133×76.1 | 205 | 117 | 105.5 | φ80 | ||
| 5x21/2 | 5.25×3 | ||||||
| 125×80 | 133×88.9 | 205 | 129 | 105.5 | φ92 | ||
| 5×3 | 5.25×3.5 | ||||||
| 125×40 | 139.7×48.3 | 212 | 90 | 109 | φ53 | ||
| 5x11/2 | 5.5×1.9 | ||||||
| 125×50 | 139.7×60.3 | 212 | 100 | 109 | φ64 | ||
| 5×2 | 5.5×2.375 | ||||||
| 125×65 | 139.7×76.1 | 212 | φ70 | ||||
| 5x21/2 | 5.5×3 | ||||||
| 125×80 | 139.7×88.9 | 212 | φ89 | ||||
| 5×3 | 5.5×3.5 | ||||||
| 125×100 | 139.7×114.3 | 212 | φ114 | ||||
| 5×4 | 5.5×4.5 | ||||||
| 125×40 | 141.3×48.3 | 212 | 90 | 109 | φ53 | ||
| 5x11/2 | 5.563×1.9 | ||||||
| 125×50 | 141.3×60.3 | 212 | 100 | 109 | φ64 | ||
| 5×2 | 5.563×2.375 | ||||||
| 125×80 | 141.3×88.9 | 212 | φ89 | ||||
| 5×3 | 5.563×3.5 | ||||||
| 125×100 | 141.3×114.3 | 212 | φ111 | ||||
| 5×4 | 5.563×4.5 | ||||||
| 150×50 | 159×60.3 | 233 | 100 | 118 | 9/16×3 (M14×75) | φ64 | |
| 6×2 | 6.25×2.375 | ||||||
| 150×65 | 159×76.1 | 233 | φ80 | ||||
| 6x21/2 | 6.25×3 | ||||||
| 150×80 | 159×88.9 | 233 | φ92 | ||||
| 6×3 | 6.25×3.5 | ||||||
| 150×100 | 159.0×108.0 | 233 | 143 | 119.5 | φ104 | ||
| 6×4 | 6.25×4.25 | ||||||
| 150×100 | 159.0×114.3 | 233 | φ111 | ||||
| 6×4 | 6.25×4.5 | ||||||
| 150×50 | 165.1×60.3 | 239 | 100 | 121 | φ64 | ||
| 6×2 | 6.5×2.375 | ||||||
| 150×65 | 165.1×76.1 | 248 | φ80 | ||||
| 6× 2 1 / 2 | 6.5×3 | ||||||
| 150×80 | 165.1×88.9 | 239 | φ92 | ||||
| 6×3 | 6.5×3.5 | ||||||
| 150×100 | 165.1×108 | 239 | 143 | 122 | φ104 | ||
| 6×4 | 6.5×4.25 | ||||||
| 150×100 | 165.1×114.3 | 239 | φ114 | ||||
| 6×4 | 6.5×4.5 | ||||||
| 150×32 | 168.3×42.4 | 248 | 72 | 121 | 5/8×3-1/3 (M16×85) | φ46 | |
| 6x11/4 | 6.625×1.669 | ||||||
| 150×40 | 168.3×48.3 | 248 | 79 | 121 | φ53 | ||
| 6x11/2 | 6.625×1.9 | ||||||
| 150×50 | 168.3×60.3 | 239 | 100 | 121 | 9/16×3-1/3 (M14×85) | φ64 | |
| 6×2 | 6.625×2.375 | ||||||
| 150×65 | 168.3×73 | 239 | |||||
| 6x21/2 | 6.625×2.875 | ||||||
| 150×65 | 168.3×76.1 | 239 | φ70 | ||||
| 6x21/2 | 6.625×3 | ||||||
| 150×80 | 168.3×88.9 | 239 | φ89 | ||||
| 6×3 | 6.625×3.5 | ||||||
| 150×100 | 168.3×114.3 | 239 | φ114 | ||||
| 6×4 | 6.625×4.5 | ||||||
| 200×50 | 219.1×60.3 | 311 | 100 | 147.5 | 5/8×3-1/3 (M16×85) | φ64 | |
| 8×2 | 8.625×2.375 | ||||||
| 200×65 | 219.1×76.1 | 311 | φ70 | ||||
| 8x21/2 | 8.625×3 | ||||||
| 200×80 | 219.1×88.9 | 311 | φ89 | ||||
| 8×3 | 8.625×3.5 | ||||||
| 200×100 | 219.1×108 | 311 | 143 | 148.5 | φ104 | ||
| 8×4 | 8.625×4.25 | ||||||
| 200×100 | 219.1×114.3 | 311 | φ114 | ||||
| 8×4 | 8.625×4.5 | ||||||
| 200×125 | 219.1×133 | 311 | 168 | 149 | φ129 | ||
| 8×5 | 8.625×5.25 | ||||||
| 200×125 | 219.1×139.7 | 311 | 178 | 149 | φ135 | ||
| 8×5 | 8.625×5.5 | ||||||
| 250×100 | 273×114 | 379 | 3/4×3-1/2 (M20×90) | φ104 | |||
| 10×4 | 10.75×4.5 | ||||||
| 250×150 | 273×165.1 | 379 | 197.6 | 178 | φ155 | ||
| 10×6 | 10.75×6.5 | ||||||
LEDE company design and manufacture grooved piping system jointing fittings, is a leading China grooved mechanical tee manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of grooved mechanical tee fittings for grooved piping system, made in accordance with UL, CE, ISO certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron mechanical tee as well as custom firefighting and water supply solutions based on the client needs.
