Grooved pipe fittings

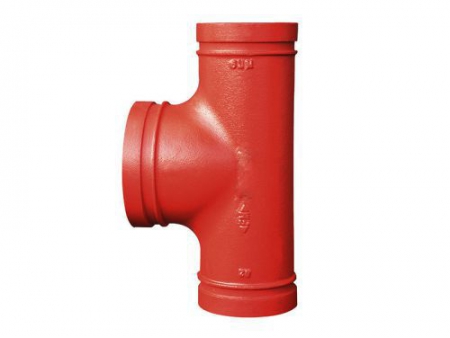

Grooved bullhead tee is a type of tee fitting where the size of branch pipe is larger than the main pipe. This grooved tee is used to connect pipes, change the directions of pipeline, and adjust the size of components.

Recommended Applications

Grooved bullhead tee is suitable for piping systems in industries such as chemical, petroleum, natural gas, water supply and gas supply, heat transfer, and more, such as chemical piping systems, deep-sea oil well piping systems, and more.

Key Specifications
  • Available sizes: 1 inch~12 inch |DN25~DN300
  • Working pressure: 300PSI/2.07MPa
  • Certificate: FM/UL/CE certified
  • Coating: epoxy /galvanized
  • Color: red/orange/white, etc.
Specifications

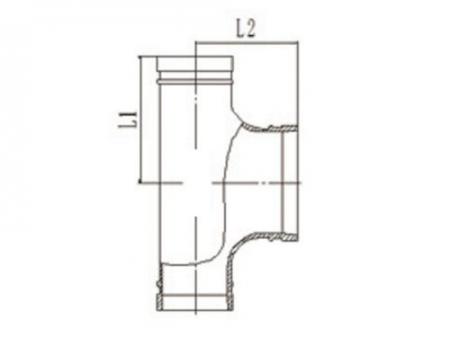

Nominal Size Pipe O.D. mm/in Dimension mm
L1 L2
mm/in mm/in mm/in mm/in
50*50*65 / 2*2*2 1/2 60.3*60.3*73 / 2.375*2.375*2.875 95 83
50*50*80 / 2*2*3 60.3*60.3*88.9 / 2.375*2.375*3.5 108 95
50*50*100 / 2*2*4 60.3*60.3*114.3 / 2.375*2.375*4.5 127 102
65*65*80 / 2 1/2*2 1/2*3 73*73*88.9 / 2.875*2.875*3.5 108 95
65*65*100 / 2 1/2*2 1/2*4 73*73*114.3 / 2.875*2.875*4.5 127 102
65*65*80 / 2 1/2*2 1/2*3 76*76*88.9 / 3*3*3.5 108 95
65*65*100 / 2 1/2*2 1/2*4 76*76*114.3 / 3*3*4.5 127 102
80*80*100 / 2 1/2*2 1/2*4 88.9*88.9*114.3 / 2.875*2.875*4.5 127 102
100*100*150 / 4*4*6 114.3*114.3*150 / 4.5*4.5*6.625 165 127
125*125*200 / 5*5*8 141.3*141.3*219.1 / 5.563*5.563*8.625 197 140
150*150*200 / 6*6*8 168.3*168.3*219.1 / 6.625*6.625*8.625 197 165
