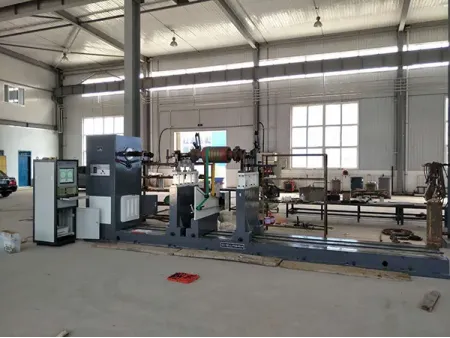

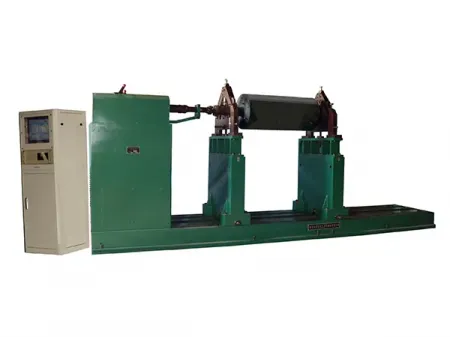

Horizontal Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/1-2-2-25-hard-bearing-balancing-machine.html

YYWQ-5000

Hard-bearing balancing machine (universal joint belt drive) for workpiece with diameter of up to 2500mm and weight of 100-5000kg

Horizontal hard-bearing balancing machine with dual-drive design, offering both universal joint and belt drive
Capable of balancing rotors from 100 to 5000 kg, with diameters up to 2500 mm
Support span can reach 2500 mm and can also be customized based on user needs
Works well for different workpiece sizes, ensuring stable performance and reliable accuracy

Applications

Used for dynamic balancing of motor rotors, fan and pump impellers, separator rotors, oil press rotors, rollers, paperboard machine rotors, and crushers, covering a wide range of industrial components.

Motor rotors balancing
Fan and pump impellers balancing

Specifications

Workpiece weight	Universal joint drive	500-5000kg
	Belt drive	100-1000kg
Max. workpiece diameter		2500mm
Journal diameter of workpiece		Ø40-300mm
Min. distance between two bearings		300mm
Max. distance from coupling end to right bearing support		2500mm
Balancing speed (variable speed control)	Universal joint drive	180-1400r/min
	Belt drive	500-3000r/min
Min. achievable residual unbalance (eMar)		≤1g.mm/kg
Unbalance reduction ratio (URR)		≥90%
Motor power		18.5kW

Features

Variable-frequency drive with stepless speed control for flexible operation.
One-piece cast machine base, fully machined to ensure installation accuracy and mechanical strength. Easy to operate, supported by a digital display measuring system with microprocessor control.
Equipped with the ZL-210 (touch screen type) measuring system, which is designed for a wide range of applications and delivers high measurement accuracy.
17-inch LCD display, nine support modes for user selection, automatic programmable amplifier, high-performance filter, and outputs via printer and additional expansion ports.
