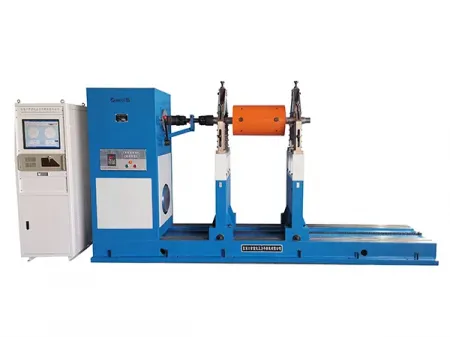

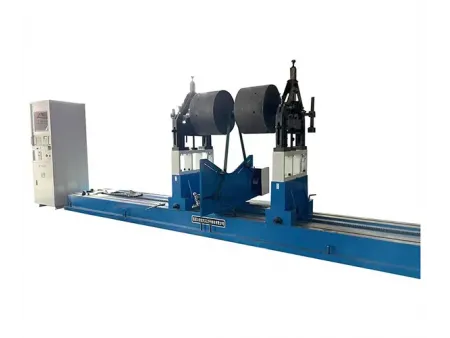

Horizontal Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/1-2-2-20-hard-bearing-balancing-machine.html

YYQ-5000

Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 1000mm and weight of 200-5000kg

Belt-driven horizontal hard-bearing design, stable and reliable for heavy rotors
Handles workpieces from 200 kg up to 5000 kg, with a maximum diameter of 1000 mm
Suitable for balance correction of industrial rotors such as motors, impellers, and heavy machinery components

Applications

Widely used for dynamic balancing of electric motor rotors, fan impellers, marine turbocharger rotors, crankshafts, machine tool spindles, and long rolls for paper and printing machinery. They can perform single-plane or double-plane measurements, and also supports multiple correction planes when needed.

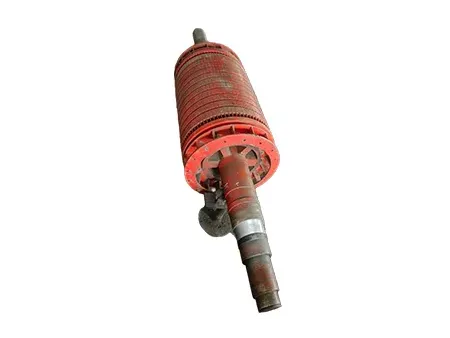

Motor rotors balancing
Fan impellers balancing

Specifications

Workpiece weight	200-5000kg
Max. workpiece diameter	Ø1000mm
Journal diameter of workpiece	Ø40-Ø300mm
Distance between two bearing supports	180-2200mm
Min. achievable residual unbalance (eMar)	1g.mm/kg
Balancing speed (stepless speed control)	300-2500r/min
Unbalance reduction ratio (URR)	≥90%

Features & Advantages

Correction plane data can be input before startup, to make results available as soon as the rotor begins to run.
Unbalance size and angle are displayed clearly during the test for easier interpretation.
Equipped with the ZL-220 dynamic balancing measuring system, available in both digital display and computer screen display options.
