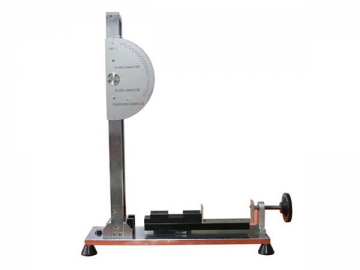

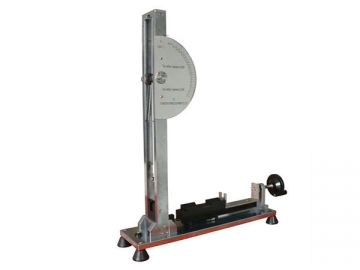

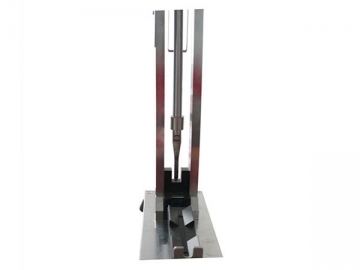

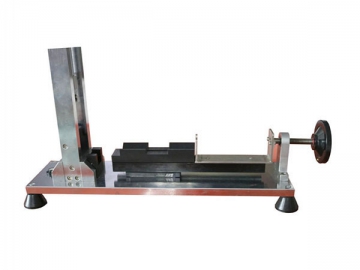

Calibration Device for Spring Impact Hammer SH-7
Request a Quote
View All: http://hctestequipment.com
Standard

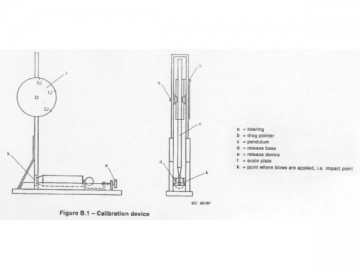

IEC 60068-2-63 Annex A, IEC 60068-2-75 Annex B
Application
This device is intended to verify the impact energy of spring operated impact hammers.
Test sample
Spring operated impact hammers
Features
Complies with IEC60068-2-63 and IEC60068-2-75 standards
Parameters(mm)
1. Accuracy: 0.01J
2. Repeat accuracy: ±0.01J
3. Measurement range: 0~2J
4. Guide groove diameter: 51mm
5. The energy loss of the pendulum: <0.002J
6. Trigger distance: >30mm
7. Balance weight: 2J Copper weight 1 piece
