Jacquard Webbing Warp Knitting Machine
Request a Quote

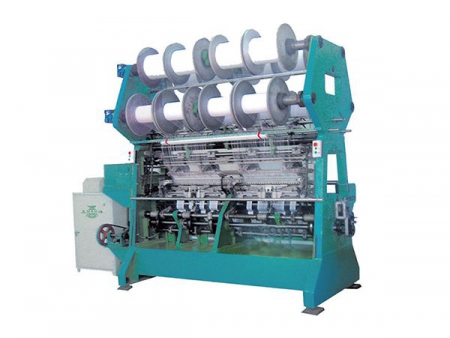

GE2296 Raschel Machine
Double needle bar raschel knitting machine for producing knitted webbing
Applications

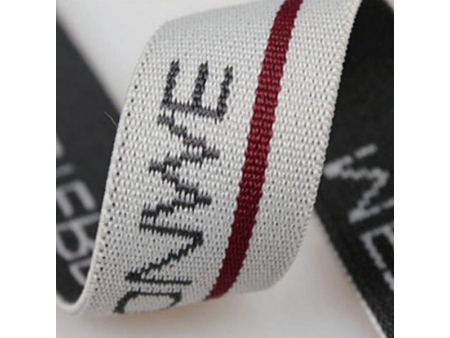

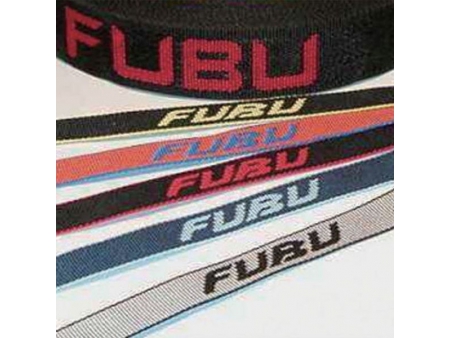

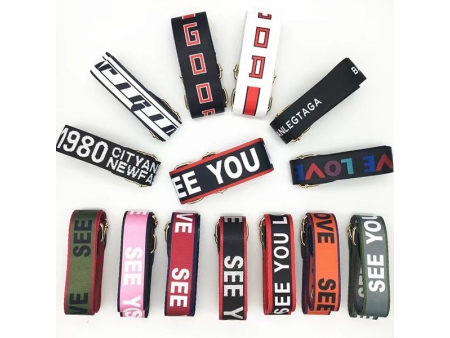

Knitted webbing used in luggage, apparel, tent, outdoor goods, etc.
Features
- Jacquard webbing warp knitting machine adopts an optimized crankshaft connecting rod system.
- The raschel knitting machine uses a four-bar-linkage mechanism for knitting.
- The webbing machine comes with short latch needles for faster speed and fabric output.
- This textile machinery has the functions of electronic yarn let-off, electronic fabric take-up, electronic guide bar control (EL), and electronic jacquard.
Specifications
- Needle type Individual latch needle, block latch needle
- Gauge E22
- Number of bars 4 bars (2 ground bars, 4 pieces of half jacquard bar)
- Distance between knocking-over bar 2-16mm
- Working width 90"
- Max. speed 600 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE2296-90" | 4100×5500×3400 | 18.5 | 8500 | 8.25 |
