GE282 Raschel Machine

Double needle bar raschel knitting machine for producing knitted ribbons, scarfs and elastic bandages

Applications

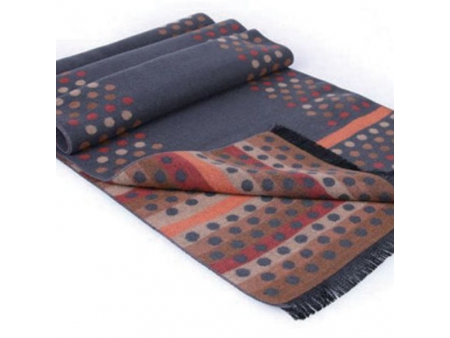

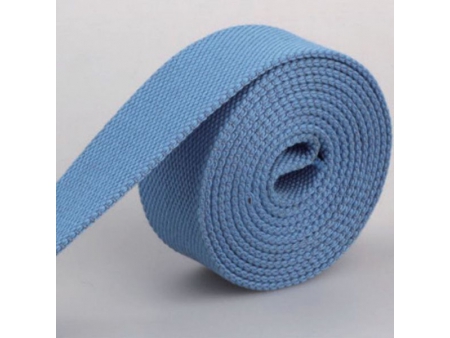

Knitted ribbons, scarfs and elastic bandages, packaging cylindrical fabrics, pantyhose, and more.

Features
  • Jacquard webbing warp knitting machine adopts open-type cam-linkage drive.
  • Simple structure, easy operation and high adaptability to process changes.
Specifications
  • Needle type Block latch needle
  • Gauge E12, E16, E18, E22
  • Number of bars 2-16 bars
  • Working width 27"/54"
  • Max. speed 500 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
282-27" 1800×2300×2700 4.14 3000 5.77
282-54" 2900×2300×2700 6.67 3800 5.77
