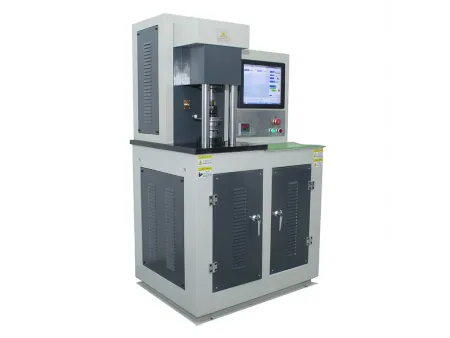

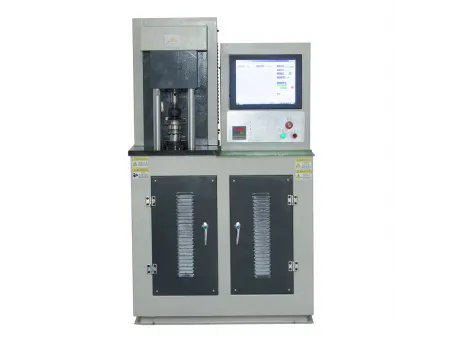

Fully Automatic Four Ball Friction and Wear Testing Machine

Fully Automatic Four Ball Friction and Wear Testing Machine
Fully Automatic Four Ball Friction and Wear Testing Machine
Fully Automatic Four Ball Friction and Wear Testing Machine
Request a Quote

Four ball tester / tribometer for determining friction and wear properties of lubricant (lubricating oils and greases)

Standards
ASTM D 4172, ASTM D2266-01, ASTM D2783-2003 (2009), ASTM D2596-2010

Applications
This friction and wear tester is widely used in evaluating lubricating oils, greases, and components such as tapered roller bearings.

The four-ball tribometer is used to determine the friction and wear properties of lubricant, including oil and grease, under varying load conditions. It accurately assesses the load-bearing capacity of lubricants through several key metrics: maximum non-seizure load (Pb), sintering load (Pd), and comprehensive wear value (ZMZ). This machine allows for long-term wear tests without compromising the precision of the Pb measurement, even after multiple Pd tests. It can also measure the coefficient of friction while recording friction force and temperature curves. For enhanced precision, the system can be equipped with high-accuracy measuring devices to calculate and display wear scar diameters on-screen. With specialized attachments, these friction and wear testing machines can perform end-face wear tests and simulate material behavior under specific conditions.

The four ball friction and wear testing machine (referred to as the four ball machine) is the most commonly used instrument for evaluating the extreme pressure anti-wear and anti friction properties of various lubricating materials, as well as for conducting frictional research. It has outstanding advantages such as simple operation, low experimental cost, and fast measurement speed. It is widely used in the performance evaluation of base oils, additives, compound formulations, and oil quality supervision and inspection. It is also the most commonly used tool for conducting frictional theory research.

Technical Specifications

Axial test force range 20-10000N
Relative accuracy of test force display ±1% (0.5)
Accuracy of testing force display for a long time ±1%F.S (0.5)
Loading method Fully automatic loading (non-hydraulic,state related patent)
Friction torque 13500N.mm
Relative accuracy of friction torque display ±2%
Spindle frequency conversion speed 10-3000r/min
Accuracy of spindle speed ±5r/min
Oil tank stroke >45mm
Spindle bore taper 1:7
Working temperature of heater Room temperature to 250℃
Accuracy of temperature ≤2℃
Control mode Touch screen control of entire test process (dual function)
Test time display and control range 1-99999s or 1-99999min
Revolution display and control range 999999999
Main motor Taiwan TECO servo motor
Test oil quantity Approximately 10ml
Diameter of test steel ball 12.7
Dimensions (L×W×H) (mm) Approximately 1160×750×1640
Weight Approximately 400kg
Rated power 2.5kW

Basic Functional Characteristics

  • Test the maximum non stick load Pb, sintering load Pd, comprehensive wear value ZMZ, D value and other indicators of the lubricant
  • Long term wear resistance test of lubricants, determination of friction coefficient
  • Special test for lubricating oil: friction coefficient step test (SH0762/ASTM5183)
  • Rapid expansion of KRL lubricant shear test (SH0845)
  • Improve lubricating oil process and control the optimal economic ratio of formula

Standard Features

  • Load: direct real-time measurement of contact load without conversion, benchmarking against specific requirements of ISO/ASTM/GB/SH and other standards
  • Operation: parameter setting, level selection, minimalist operation, improve work efficiency, and reduce operational errors

High-End Upgradable Functions

  • Fully automatic: with a high degree of automation, after installing the sample, you can enter the fully automatic test (only 2 keys are needed)
  • Accuracy: load and friction force can be self calibrated during startup, and friction force can also be equipped with dual sensors to improve absolute accuracy
  • Grinding spot: the grinding spot diameter directly displays the reference value and quickly locks the level (without the need for a microscope)
  • Judgment: PB and PD multi-directional online judgment to improve accuracy and equipment service life (ms level protection)
  • Extension function: it can quickly carry out step tests for friction coefficient (SH0762/ASTM5183) and convert KRL lubricating oil shear tests (SH0845)
  • Quick comparison: develop new oil products without the need for a microscope, quickly calculate the comprehensive wear performance ZMZ index
