The Rigid 3 axis machining center has a workbench of 1360×700mm, whose maximum load is 1000kg. Its positioning accuracy reaches ±0.005/300mm. This machining center is suited to the rough processing or mold manufacturing of various products.

Parameters
Model VMC-1270
Stroke
X-axis travel (mm) 1200
Y-axis travel (mm) 700
Z-axis travel (mm) 600
Distance from spindle nose to table center (mm) 150-750
Distance from spindle nose to table center (mm) 785
Worktable
Worktable area (mm) 1360×700
Maximum weight on table (kg) 1000
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm) 18-5×100
Spindle
Standard spindle speed (r.p.m) 8000
Spindle horsepower (KW) 15 (11)
Spindle taper BT50φ155 (belt drive)
Feed
X、Y-axis rapid feed (mm/min) 18000
Z-axis rapid feed (mm/min) 15000
Triaxial cutting feed (mm/min) 1-10000
Others
Three-axis motor power (KW) 3.0/3.0/3.0
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 1/2
Power requirement (KVA) 25
Air pressure (bar) 6-7
Machine weight (kg) 11500
Machine dimension (mm) 3560×3150×2850
Components display of vertical machining centers (3 axis box guideways)
  • Turntable type tool magazine, holding 24 tools.

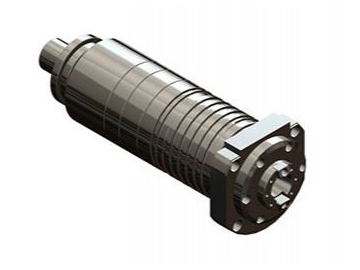

  • Mechanical spindle, direct drive

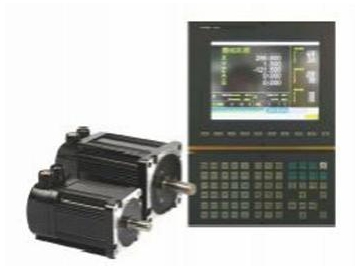

  • Control system and motor

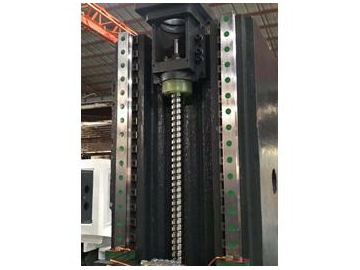

  • Box guideway
