Heavy-Duty Vertical Machining Center (3 Box way) 3 Axis Vertical Machining Center Manufacturer

Heavy-Duty Vertical Machining Center (3 Box way) 3 Axis Vertical Machining Center

Request a Quote

View All: http://tycncmachine.com/1-2-vertical-machining-center-3-axis-box-guideways.html

Our vertical machining center (3 axis box guideways) is designed for the rough machining of products and mold manufacturing, with an emphasis on cutting. The guideway and workbench is an integrated casting part. The guideway is machined based on the casting, thus enabling stronger bearing capacity on the machining center.

Vertical machining centers (3 axis box guideways) produced by Tying CNC

X-axis travel :800mm
Y-axis travel :500mm
Z-axis travel:500mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:600kg
X-axis travel :1000mm
Y-axis travel :600mm
Z-axis travel:600mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:900kg
X-axis travel :1200mm
Y-axis travel :700mm
Z-axis travel:600mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:1000kg
X-axis travel :1300mm
Y-axis travel :700mm
Z-axis travel:650mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:1200kg
X-axis travel :1500mm
Y-axis travel :800mm
Z-axis travel:700mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:1500kg
X-axis travel :1600mm
Y-axis travel :900mm
Z-axis travel:680mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:2000kg
X-axis travel :1800mm
Y-axis travel :900mm
Z-axis travel:800mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:2000kg

Samples machined by our vertical machining center

Large workpiece by vertical machining center
Hardware accessories by vertical machining center
Moulds by vertical machining center
Moulds by vertical machining center

Features of vertical machining centers (3 axis box guideways)

Spindle, lead screw and guideway are all from Taiwan, Japan or Germany, and offer stable quality.
The supports on both ends of each axis are fixed by 5 nuts. And a prestretching device is installed on one end of the axis to ensure the accuracy of thermal expansion.
The motor and spindle is connected by coupling to reduce transmission clearance and improve the accuracy.

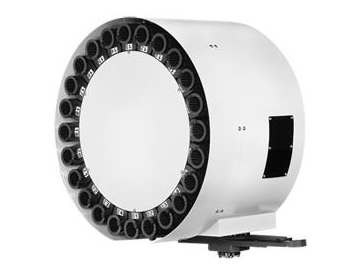

As for these components, the control system can be changed depending on client needs. Our tool storage can be assembled with more tools. And please click the for detailed information.
