The Vertical machining center, VMC center, 1890 type is intended for the rough processing of various products and mold manufacturing. The main machining operation is cutting. This machining center has a spindle speed of 6000r.p.m and a positioning accuracy of ±0.005/300mm. And the using of this vertical machining center only requires a power of 30KVA.

Parameters
Model VMC-1890
Stroke
X-axis travel (mm) 1800
Y-axis travel (mm) 900
Z-axis travel (mm) 800
Distance from spindle nose to table center (mm) 210-1010
Distance from spindle nose to table center (mm) 970
Worktable
Worktable area (mm) 1970×1000
Maximum weight on table (kg) 2000
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm) 18-7×120
Spindle
Standard spindle speed (r.p.m) 6000
Spindle horsepower (KW) 29.5 (22)
Spindle taper BT50φ190 (belt drive)
Feed
X、Y-axis rapid feed (mm/min) 15000
Z-axis rapid feed (mm/min) 13000
Triaxial cutting feed (mm/min) 1-7000
Others
Three-axis motor power (KW) 4.5/7.0/4.5
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 1/2
Power requirement (KVA) 30
Air pressure (bar) 6-7
Machine weight (kg) 16400
Machine dimension (mm) 5100×3400×3200
Components display of vertical machining centers (3 axis box guideways)
  • Turntable type tool magazine, holding 24 tools.

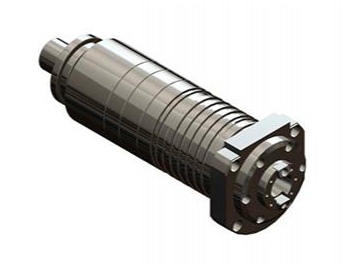

  • Mechanical spindle, direct drive

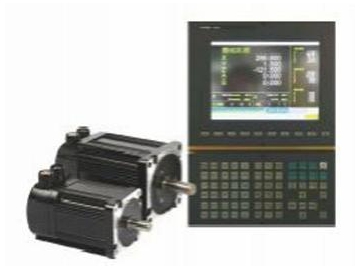

  • Control system and motor

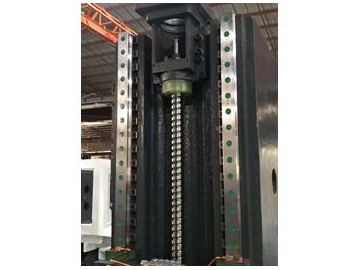

  • Box guideway
