VMC-1690 Vertical Machining Center (Box Way) 3 Axis CNC Vertical Machining Center
Request a Quote
The 3 axis CNC vertical machining center’s X-axis, Y-axis and Z-axis travel is 1600nm, 900nm and 680nm, respectively. During the machining of products, its positioning accuracy is ±0.005/300mm and repeatability is ±0.003/300. This ensures machined products of high precision. This machining center is designed for the rough processing and mold manufacturing of products.
Parameters| Model | VMC-1690 |
| Stroke | |
| X-axis travel (mm) | 1600 |
| Y-axis travel (mm) | 900 |
| Z-axis travel (mm) | 680 |
| Distance from spindle nose to table center (mm) | 210-1010 |
| Distance from spindle nose to table center (mm) | 970 |
| Worktable | |
| Worktable area (mm) | 1860×1000 |
| Maximum weight on table (kg) | 2000 |
| T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm) | 18-7×120 |
| Spindle | |
| Standard spindle speed (r.p.m) | 6000 |
| Spindle horsepower (KW) | 25 (18.5) |
| Spindle taper | BT50φ190 (belt drive) |
| Feed | |
| X、Y-axis rapid feed (mm/min) | 15000 |
| Z-axis rapid feed (mm/min) | 13000 |
| Triaxial cutting feed (mm/min) | 1-7000 |
| Others | |
| Three-axis motor power (KW) | 4.5/4.5/4.5 |
| Positioning accuracy (mm) | ±0.005/300 |
| Repeatability (mm) | ±0.003/300 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 1/2 |
| Power requirement (KVA) | 30 |
| Air pressure (bar) | 6-7 |
| Machine weight (kg) | 14500 |
| Machine dimension (mm) | 5100×3400×3200 |
- Turntable type tool magazine, holding 24 tools.

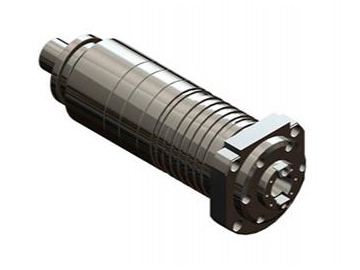

- Mechanical spindle, direct drive

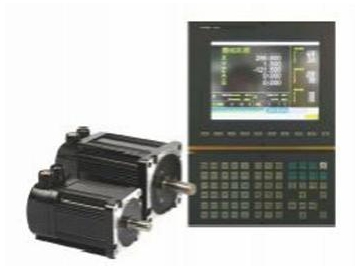

- Control system and motor

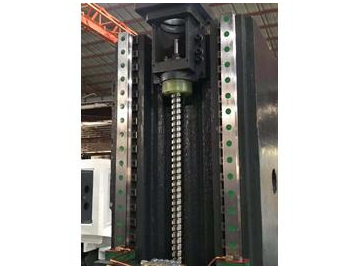

- Box guideway
