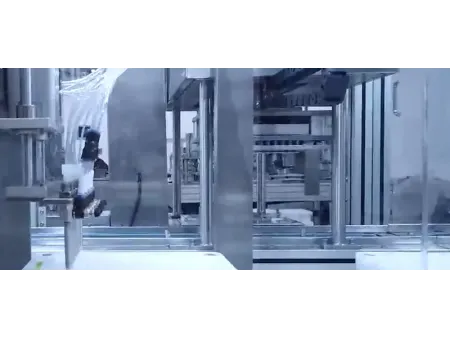

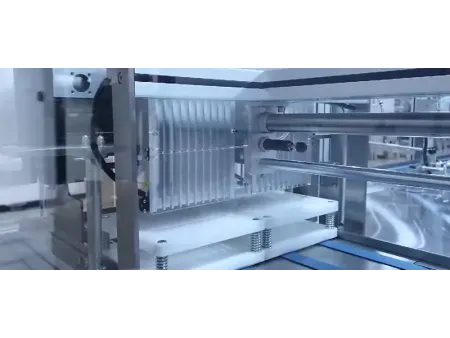

Automatic Non-Vacuum Blood Collection Tube Assembly Line
Request a Quote
View All: http://medical-machinery.com/1-2-4-automatic-non-vacuum-blood-collection-tube-assembly-line.html
10,000-15,000 pcs/h
Blood collection tube assembly machine for non-vacuum blood collection tubes
- Production capacity 10,000-15,000 pcs/h
- Tube size Ø13×75mm, Ø13×100mm, customizable
(available in PET, PP, glass) - Cap size As per client’s samples
Finished Product Samples
Capable of producing 10,000 to 15,000 non-vacuum blood collection tubes per hour, this automated assembly line offers a reliable and streamlined production process. The system is compatible with various tube materials, including PET, PP, and glass, making it suitable for diverse manufacturing needs. With precise additive dosing and consistent output, it’s an efficient solution for manufacturers focused on high-volume production.
Work Flow
- Tube loading
- Inversion detection
- Additive dosing (EDTA, heparin, clot activator, sodium citrate)
- Capping
- Foam tray loading
- Heat shrink packaging
- Completion
Technical Specifications
Model | HY100AB |
Production capacity | 10,000-15,000 pcs/h |
Tube size | Ø13×75mm, Ø13×100mm, customizable |
Cap size | As per client’s samples |
Control system | PLC control with touch screen |
Additive dosing system | K2/K3 EDTA: 10 sets of precision ceramic pump |
Blood clot activator (BCA): 10 sets of precision ceramic pump | |
Sodium citrate: 5 sets of precision ceramic pump | |
Additive drying system | 4 PTC dust-free drying machines |
Detection system | Inverted tube detection before additive dosing |
Alarm for shortage of foam trays | |
Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
Power | 25kW/AC380V |
