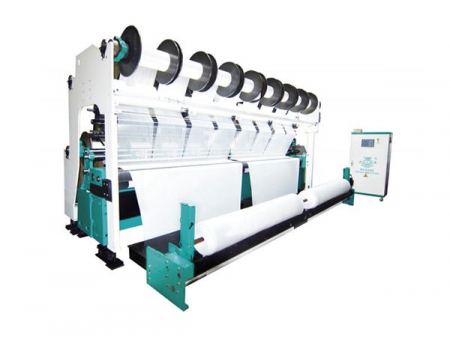

GE2296 Raschel Machine

Double needle bar raschel knitting machine for producing knitted webbing

Applications

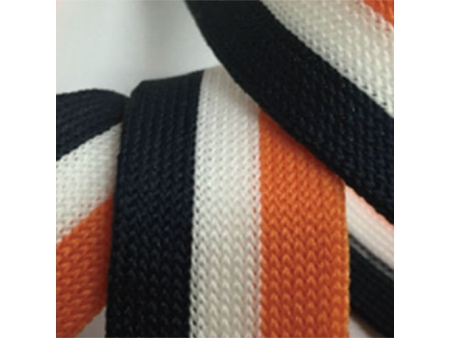

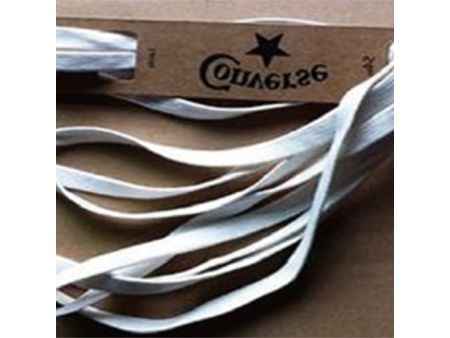

Knitted webbing used in luggage, apparel, tent, outdoor goods, etc.

Features
  • The webbing warp knitting machine adopts an optimized crankshaft connecting rod system or cam-linkage drive.
  • Double needle bar raschel knitting machine uses a four-bar-linkage mechanism for knitting.
  • The webbing machine comes with short latch needles for faster speed and fabric output.
  • This textile machinery has the functions of electronic yarn let-off, electronic fabric take-up, electronic guide bar control (EL).
Specifications
  • Needle type Individual latch needle
  • Gauge E22
  • Number of bars 6 bars
  • Distance between knocking-over bar 2-16mm
  • Working width 44"/60"/90"
  • Max. speed 800 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
2296-44" 2430×2300×2530 5.7 4000 7.65
2296-60" 2800×2300×2530 6.4 5000 7.65
2296-90" 4100×5500×3400 18.5 8500 9.75
